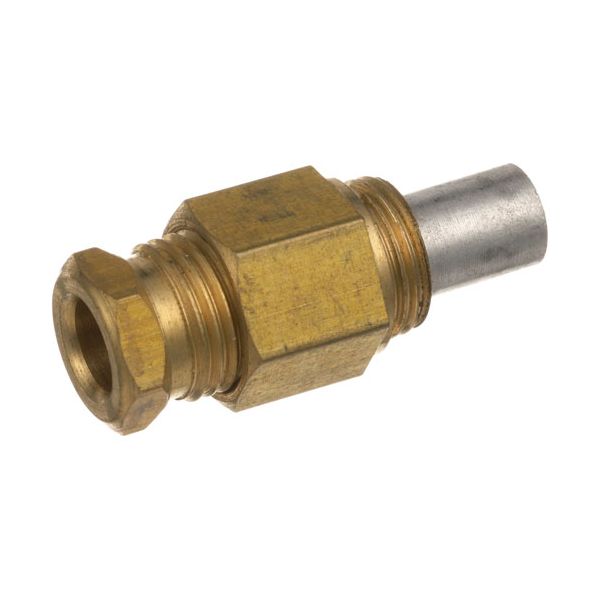

Nieco 2023 Pilot Orifice W/Counter Bored Flat .012" 1/4" CCT
CAD$7.47
In stock
SKU
2023
Manufacturer:
The Nieco 2023 Pilot Orifice is a gas control part of commercial cooking equipment. It has a 0.12-inch opening and a 1/4 inch CCT connection, which is meant to control the amount of gas flowing to the pilot assembly. The flat design of the counter ensures that it is seated and aligned during installation. This outlet is fitted at the inlet of the gas, and it regulates the amount of fuel to sustain a constant pilot flame. In the appliance gas system, it operates with valves and pilot burners to provide ignition and constant operation of the main burners.
Dimensions
- Length: 1.5 In
- Width: 0.25 In
- Height: 0.25 In
- Weight: 0.1 lbs
Product Notes
- Pilot Orifice For Lp Gas, Baso,
- 1/4" Cct, .012", Counter Bored Flat,
- Also See A2289, # 26-2069 (.013")Lp
- For Nat Use A1248, M-141B, # 26-1675, .021"
- American Permanent Ware Griddle Ggm, Ggt
- Cecilware Fryer Gf16, Gf28, Fm28
- Nieco Broiler 940, 960, 962.
- Pitco Fryer
- Vulcan Griddle Mgg
- Wolf
