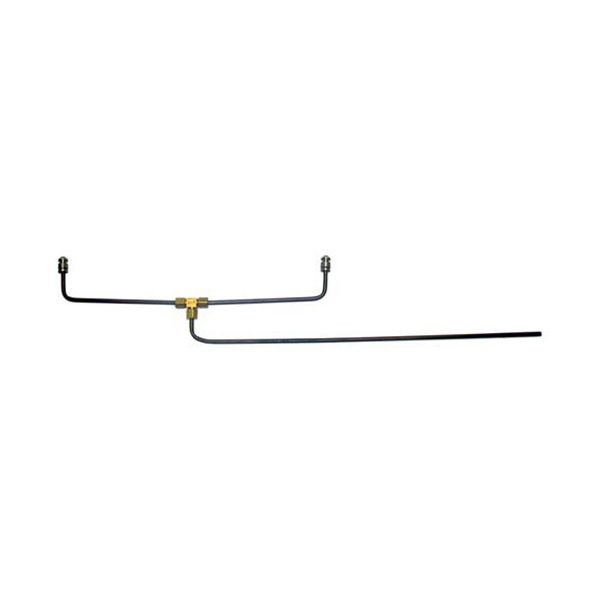

Imperial 21070 Pilot Assembly 3/16" Tubing 12-15/16" CTR of Tips 12-1/2" X 2-1/2" L

Rating:
5 5 2
2  Reviews Add Your Review
Special Price CAD$107.31 Regular Price CAD$181.74
In stock
SKU
21070
Add to Wish List
Griddle & Grill Parts, Pilot Assembly, Shop by manufacturers
Manufacturer:
The Imperial 21070 Pilot Assembly 3/16 inch tubing, 12-15/16 inch center of tips, 12-1/2 inch x 2-1/2 inch length is a gas ignition part that is used in compatible commercial cooking equipment to ensure a stable pilot flame to ignite the burner. It consists of the accuracy of the tubing and the tip spacing to fit the appliance combustion system to maintain the same flame location and ignition. This part of the appliance is installed in the burner compartment and is linked to the gas control system, and is typically found in restaurants and kitchens where the burner needs to be used.

Dimensions

  • Length: 0.5 In
  • Width: 2 In
  • Height: 12.75 In
  • Weight: 0.3 lbs
https://partsfe.com/media/catalog/product/i/m/imperial-21070-pilot-assembly-3-16-tubing-12-15-16-ctr-of-tips-12-1-2-x-2-1-2-l-53589-2.jpg

Product Notes

  • Pilot Assembly, 3/16" Tubing, 12-15/16" Ctr Of Tips,
  • 12-1/2" X 2-1/2" L Tube Connected To 2 Tip Tubes,
  • 2Ea 6-1/4" X 1-3/8" With Tips Make Up The 12-15/16" Above
  • With 3/16" Tee, Also Has Nut & Sleeve.
  • Imperial Range Ir, Elite
  • For Ir2000 Series Use A3922, # 51-1070, Assy.
  • Which Is 6" Tip Centers.
