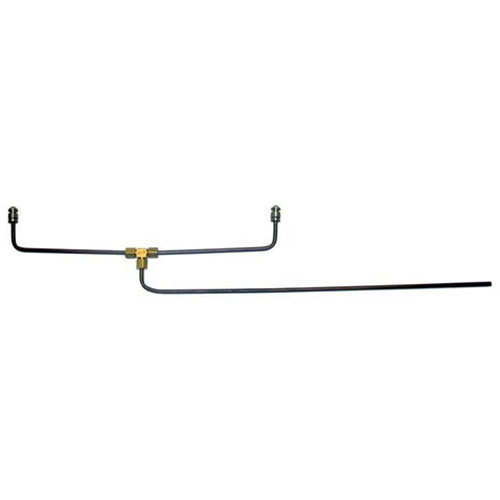

Imperial 21070 Pilot Assembly 3/16" Tubing 12-15/16" CTR of Tips 12-1/2" X 2-1/2" L

SKU: 21070 2-21070 Brand:
Imperial
Availability:
In Stock
(2)
C$107.31 Price reduced from C$181.74
Save C$74.43
Have a Question? +1 (866) 863-0907

Specifications:

  • Pilot Assembly, 3/16" Tubing, 12-15/16" Ctr Of Tips,
  • 12-1/2" X 2-1/2" L Tube Connected To 2 Tip Tubes,
  • 2Ea 6-1/4" X 1-3/8" With Tips Make Up The 12-15/16" Above
  • With 3/16" Tee, Also Has Nut & Sleeve.
  • Imperial Range Ir, Elite
  • For Ir2000 Series Use A3922, # 51-1070, Assy.
  • Which Is 6" Tip Centers.

Description

The Imperial 21070 Pilot Assembly 3/16 inch tubing, 12-15/16 inch center of tips, 12-1/2 inch x 2-1/2 inch length is a gas ignition part that is used in compatible commercial cooking equipment to ensure a stable pilot flame to ignite the burner. It consists of the accuracy of the tubing and the tip spacing to fit the appliance combustion system to maintain the same flame location and ignition. This part of the appliance is installed in the burner compartment and is linked to the gas control system, and is typically found in restaurants and kitchens where the burner needs to be used.

Dimensions:

  • Weight: 0.3 lbs
  • Length: 0.5 in
  • Height: 12.75 in
  • Width: 2 in

Step1: Shut off the gas supply completely and ensure the appliance is cool.

Step2: Remove the existing pilot assembly carefully, keeping tubing and fittings intact.

Step3: Install the new pilot assembly, aligning all tubing and connections correctly.

Step4: Tighten fittings securely without over-torquing to avoid damage.

Step5: Test pilot ignition and inspect for leaks before returning the appliance to normal operation.

Customer Reviews

5 Based on 2 reviews
5 ★
2
4 ★
0
3 ★
0
2 ★
0
1 ★
0
2 reviews
  • Quick Installation
    Lachlan —

    Pilot ignites promptly, ensuring oven heats to correct temperature each cycle.

  • Durable and Dependable
    Jay —

    This pilot assembly is secure and can withstand high temperatures successfully It is an excellent option for any high-demand application.
