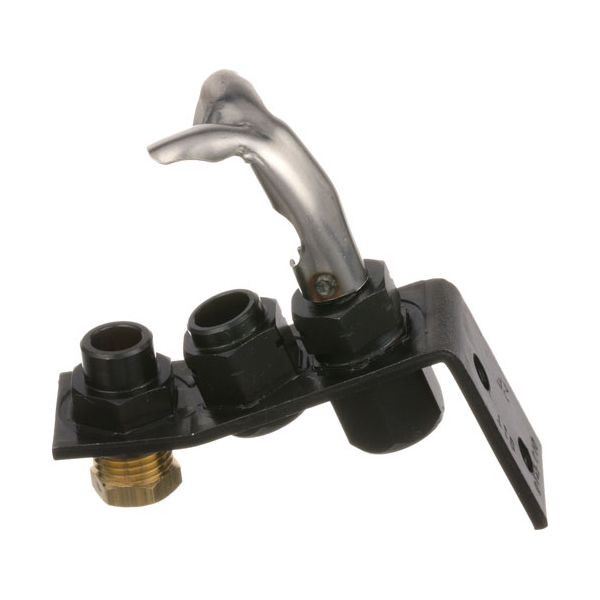

Garland 2200700 Range Pilot Burner Assembly Right Hand

SKU: 2200700 2-2200700 Brand:
Garland
Availability:
In Stock
(2)
C$56.00
Have a Question? +1 (866) 863-0907

Specifications:

  • Pilot Burner Only, No Orifice,
  • Nat/Lp Pilot, Factory # , Tube Size 3/16",
  • All Threads Are 3/16" Cct
  • Flame Pattern Standard,
  • No Longer Includes Olive Sleeve, If Needed, Can Use Pilot
  • Assembly # 51-1286
  • Garland
  • Range Hot Top: Stw286.
  • Series: Master Series Ovens, Griddles With Suffix
  • Re/Rce~
  • Mst4Se
  • Griddle Series: Gd

Description

The Garland 2200700 Range Pilot Burner Assembly Right Hand is a gas ignition assembly component that is fitted in commercial cooking ranges to give a stable pilot flame to the right of the equipment. It directs a regulated stream of gas to the pilot burner, forming a small continuous flame that can be used to provide accurate lighting of the main burners when heat is ordered. This assembly is fitted on the right-hand side of a burner box on the range and is installed with gas valves and security controls to aid in a better combustion process.

Dimensions:

  • Weight: 0.35 lbs
  • Length: 2 in
  • Height: 1 in
  • Width: 2.5 in

This Part Fits the Following Models

100 models
Garland G SERIES Garland G24 Garland G24-15H Garland G24-15HFSD Garland G24-24G Garland G24-24GFSD Garland G24-24GTH Garland G24-24GTHX Garland G24-36G Garland G24-36GFSD Garland G24-36GTH Garland G24-36GTHX Garland G24-48G Garland G24-48GFSD Garland G24-48GTH Garland G24-48GTHX Garland G24-4L Garland G24-4S Garland G24-4T Garland G24-60G Garland G24-60GFSD Garland G24-60GTH Garland G24-60GTHX Garland G24-72G Garland G24-72GFSD Garland G24-72GTH Garland G24-72GTHX Garland G24-T Garland G36 Garland G36-6C Garland G36-6R Garland G36-6S Garland G36-6T Garland G36-G36R Garland G36T Garland G48 Garland G48-8CS Garland G48-8LL Garland G48-8RS Garland G48-8SS Garland G48P Garland G48PA Garland G48PD Garland G48PS Garland G48PSA Garland G48PSD Garland G60 Garland G60-10CC Garland G60-10CR Garland G60-10CS Garland G60-10RR Garland G60-10RS Garland G60-10SS Garland G60-6R24CC Garland G60-6R24CR Garland G60-6R24CS Garland G60-6R24RR Garland G60-6R24RS Garland G60-6R24SS Garland GD SERIES Garland GD-152H Garland GD-152HFF Garland GD-152HSTD Garland GD-15GFF Garland GD-24GFF Garland GD-302HSTD Garland GD-303HFF Garland GD-304-HFF Garland GD-304HSTD Garland GD-36GFF Garland GF SERIES Garland GF24 Garland GF24-4L Garland GF36 Garland GF36-6R Garland GF36-TTR Garland GF48 Garland GF48-LL Garland GF60 Garland GF60-10RR Garland GF60-6R24RR Garland GF60-6R24RS Garland GFE24-4L Garland GFE36-6C Garland GFE36-6R Garland GFE36-TTC Garland GFE36-TTR Garland GFE48-LL Garland GFE60-10CC Garland GFE60-10RC Garland GFE60-10RR Garland GFE60-6R24CC Garland GFE60-6R24CS Garland GFE60-6R24RC Garland GFE60-6R24RR Garland GFE60-6R24RS Garland GT SERIES Garland GTBG24-AB24 Garland GTBG24-AR24 Garland GTBG24-NR24
Showing of 100.0

GARLAND:

GL2200700

Step1: Turn off the gas supply and disconnect power to the appliance.

Step2: Remove any panels to access the existing pilot assembly.

Step3: Carefully detach the old pilot, including wiring and tubing.

Step4: Install the new pilot assembly in the same position, reconnecting all connections.

Step5: Restore gas and power, then test ignition and flame for proper operation.

Customer Reviews

5 Based on 2 reviews
5 ★
2
4 ★
0
3 ★
0
2 ★
0
1 ★
0
2 reviews
  • Stable Flame
    john —

    Provides consistent natural gas flame for safe ignition.

  • Seamless Fit
    Byreleah —

    Compact design, fits perfectly
