Imperial 0310 Pilot Burner Natural Gas
Special Price CAD$45.86 Regular Price CAD$52.55
In stock
SKU
0310
Manufacturer:

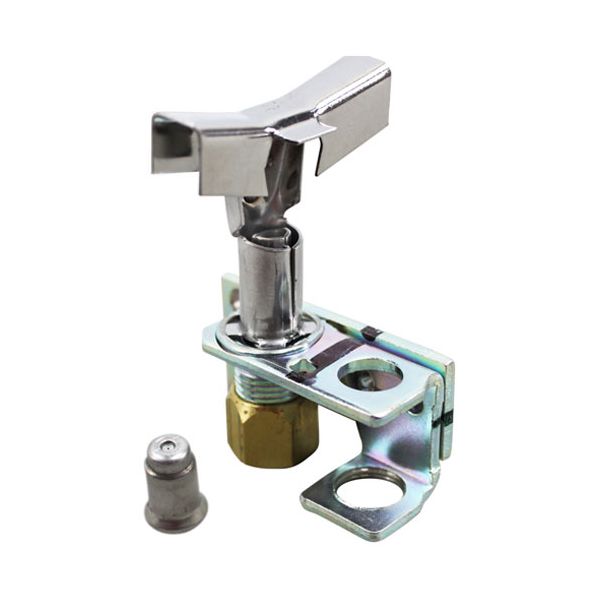

The Imperial 0310 Pilot Burner is meant to provide a constant pilot flame to natural gas ignition systems. It is placed close to the main burner and it offers the ignition source needed to Star Mfgt up and operate continuously. The pilot burner is necessary in the regulation of the gas flow and ignition timing. Replacement is also suggested in case of irregular flame or in case of reduced ignition performance assisting to keep the part running safely and in a stable way.
Dimensions
- Length: 1.75 In
- Width: 2 In
- Height: 2.5 In
- Weight: 0.2 lbs
Product Notes
- Nat/Lp Pilot, Factory # 6Ch14-10, 1830-491
- Tube Size 1/4", Flame Pattern 3 Way, Hood Width 1-1/2"
- Nat Orifice Pre-Installed # 26-1555, .018
- Lp Orifice Included # 26-1554, .010
- Cecilware Fryer Fmp 30, 40B, 403, 65, Fms 30, 54
- Imperial Fryer Series: If, Ihr, Ir.
- Vulcan Hart
- Fryer Gf(91G,92G), Hf91G, Hf92G (Old 7891G & 7892G),Tk-35,
- Series: 7400, 7500, 7800 (Depending On Date Of
- Model). Series: Ef
- 1Gr45M, 1Gr65M, 1Gr85M, 1Grc35, 1Grc45, 1Grc65, 1Grd45,
- 1Grd65, 1Grs35, 1Grs45, 1Grs65, Ef3, Ef4, Ef5, Gr35, Gr35F,
- Gr45, Gr45F, Gr65, Gr65F, Gr85, Gr85F, Grc35F, Grc45F,
- Grc65F, Grc85F, Grd35F, Grd45F, Grd65F, Grd85F, Grs35F,
- Grs45F, Grs65F, Grs85F
