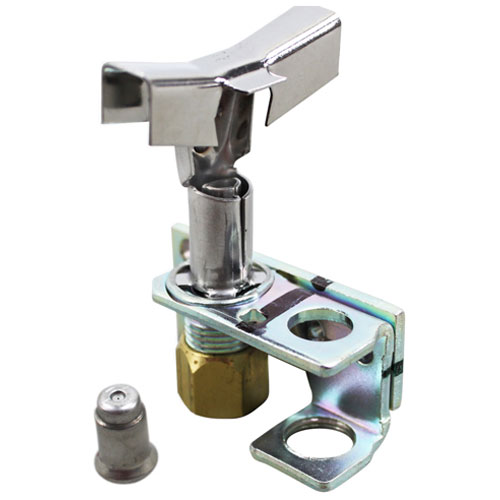

Imperial 0310 Pilot Burner Natural Gas

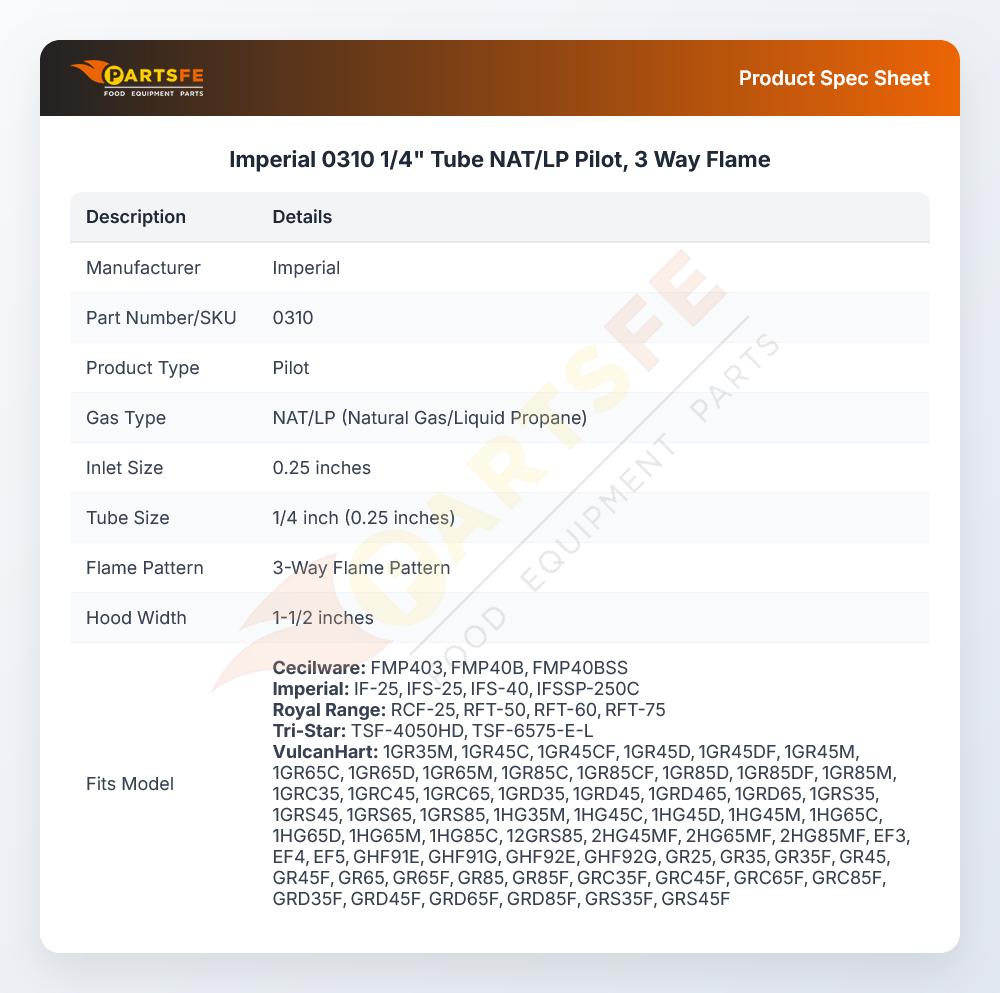

Specifications:
- Nat/Lp Pilot, Factory # 6Ch14-10, 1830-491
- Tube Size 1/4", Flame Pattern 3 Way, Hood Width 1-1/2"
- Nat Orifice Pre-Installed # 26-1555, .018
- Lp Orifice Included # 26-1554, .010
- Cecilware Fryer Fmp 30, 40B, 403, 65, Fms 30, 54
- Imperial Fryer Series: If, Ihr, Ir.
- Vulcan Hart
- Fryer Gf(91G,92G), Hf91G, Hf92G (Old 7891G & 7892G),Tk-35,
- Series: 7400, 7500, 7800 (Depending On Date Of
- Model). Series: Ef
- 1Gr45M, 1Gr65M, 1Gr85M, 1Grc35, 1Grc45, 1Grc65, 1Grd45,
- 1Grd65, 1Grs35, 1Grs45, 1Grs65, Ef3, Ef4, Ef5, Gr35, Gr35F,
- Gr45, Gr45F, Gr65, Gr65F, Gr85, Gr85F, Grc35F, Grc45F,
- Grc65F, Grc85F, Grd35F, Grd45F, Grd65F, Grd85F, Grs35F,
- Grs45F, Grs65F, Grs85F
Description
Dimensions:
- Weight: 0.2 lbs
- Length: 1.75 in
- Height: 2.5 in
- Width: 2 in
HOBART:
00-412212-00001 00-412212-00002 00-412212-00007 00-412212-1/2/7 00-721028-00001 112212-1 112212-2 21028-1 412212-00001 412212-00002 412212-00007 412212-1 412212-1/2/7 412212-2 412212-7 511467 721028-00001 721028-1
TRI-STAR:
300231 TRS300231 TS-1095-16 TS-1095-26
U-LINE:
1830-491 6CH14-10
VULCAN HART:
00-412212-00001 00-412212-00002 00-412212-00007 00-412212-1/2/7 00-4212212-00002 00-721028-00001 112212-1 112212-2 21028-1 412212-00001 412212-00002 412212-00007 412212-1 412212-1/2/7 412212-2 412212-7 721028-00001 721028-1 VH112212-1 VH112212-2 VH412212-1 VH412212-2 VH412212-7
Step1: Turn off the gas supply before starting installation.
Step2: Locate the pilot assembly within the appliance.
Step3: Disconnect gas line and mounting bracket carefully.
Step4: Remove the old pilot from its position.
Step5: Install the new pilot in the same location.
Step6: Reconnect the gas line securely.
Step7: Restore gas supply slowly.
Step8: Check pilot flame for proper operation.
