Southbend 1160410 Range Pilot assembly
Special Price CAD$201.66 Regular Price CAD$210.06
In stock
SKU
1160410

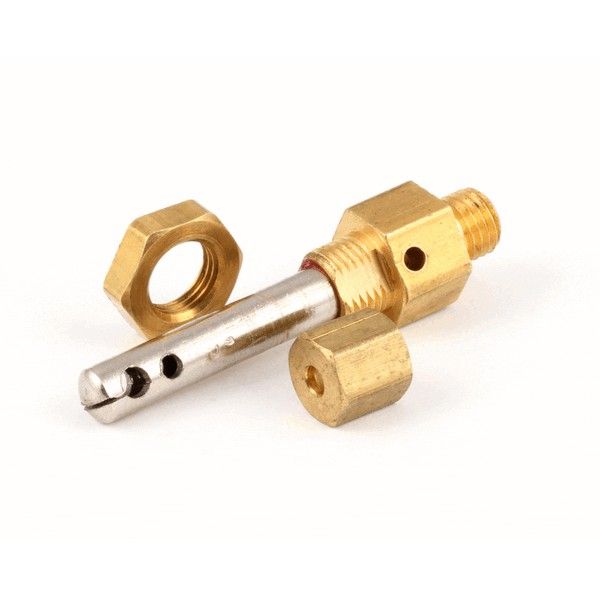

The Southbend 1160410 Pilot Assembly is an essential part of the range appliances. This has a pilot shield made from stainless steel and measures 1-1/4” while having a 2” x 1-3/4” configuration that provides adequate protection against heat and debris. It works based on the supply of gas in steady quantity for sustaining a pilot flame and the instant change of gas supply causes ignition of main burner. Among them, reliable ignition adds to safety in kitchen operations and generally has to be a main part of any professional kitchen.
Manufacturer:
Dimensions
- Length: 2.25 In
- Width: 0.5 In
- Height: 0.5 In
- Weight: 0.1 lbs
Product Notes
- Pilot 1-1/4" Long Tip,
- Nat, #73, 2 Ea Holes In Pilot Tip Goes All The Way Through,
- Small Hole Is #40 & Large Hole Is #30, And Hole In Brass
- Hex Is #35, Pilot, .024", Nat, Asm, 2" Long Has
- Lock Nut, 1/8" Cct Nut & Sleeve.
- Pilot Shield, # 26-2243
- 2" X 1-3/4" S/S Pilot Shield Used For Pilots
- # 51-1303 And # 51-1301
- Southbend Broiler 170-A/D, 171-A/D, 171-40A/C/D, 270-A/D.
- Southbend Range Series: 136, 142, 162, 300, 400.
- Series: P Graduated Hot Tops
