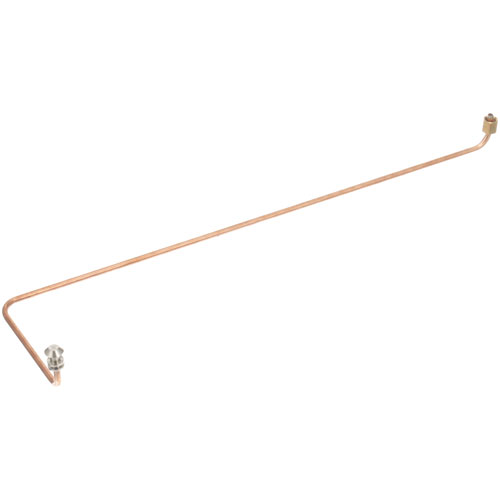

Vulcan Hart 00-428112-000G1 Range Rear Pilot Tube Assembly 90 Series

SKU: 00-428112-000G1 2-00-428112-000G1 Brand:
Vulcan Hart
Availability:
In Stock
(2)
C$90.48
Have a Question? +1 (866) 863-0907

Specifications:

  • Pilot Tube Rear (Open Top), 21-1/2" Long Copper Tube Bent,
  • Comes With Head, Nut & Sleeve, 1-1/8" X 16" X 4-1/2" X
  • 1-1/8", 3/16" Tubing.
  • Vulcan Range 24L, 36L, 48L, 60L, 160L, 260L

Description

The Vulcan Hart 00-428112-000G1 Range Rear Pilot Tube Assembly is a gas delivery part that is used in 90 Series systems. It guides the gas of the supply line to the supporting proper pilot flame position and ignition response. The tube assembly is installed at the back of the range in the gas system to ensure that is properly routed and aligned. This component is usually changed in case of blockages, leakages, or misalignment of pilot performance. The range system operation is also steady, and the assembly helps with a steady gas flow to the pilot, resulting in the stable work of the system.

Dimensions:

  • Weight: 0.1 lbs
  • Length: 16 in
  • Height: 0.5 in
  • Width: 4.5 in

HOBART:

00-417416-00001 00-421521-00001 417416-00001 417416-1 421521-00001 421521-1 428112-000G1 428112-G1

VULCAN HART:

00-417416-00001 00-421521-00001 417416-00001 417416-1 421521-00001 421521-1 428112-000G1 428112-G1

Step1: Turn off the gas supply before beginning installation.

Step2: Locate the pilot tube connection within the range.

Step3: Carefully disconnect the existing tube from the fittings.

Step4: Remove the old tube without bending the surrounding parts.

Step5: Install the new tube in the same routing path.

Step6: Secure all connections tightly.

Step7: Restore the gas supply slowly.

Step8: Check thoroughly for leaks and proper flow.

Customer Reviews

5 Based on 2 reviews
5 ★
2
4 ★
0
3 ★
0
2 ★
0
1 ★
0
2 reviews
  • Highly Recommend
    Fulaton —

    Perfect replacement, no issues

  • Pressure Controller
    Beyren —

    Fits well, operates smoothly
