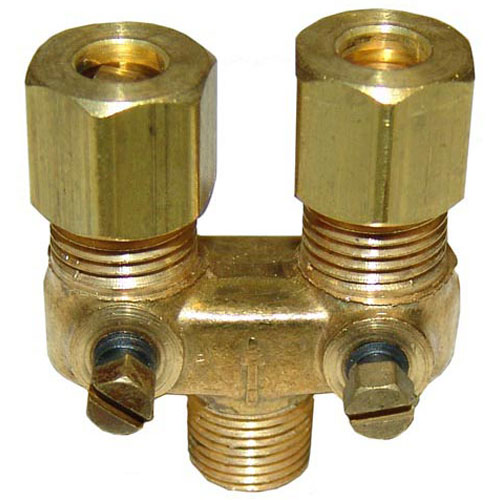

Southbend 1166004 Range Double Pilot Tube Fitting 3/16"

SKU: 1166004 2-1166004 Brand:
Southbend
Availability:
Out of Stock
(0)
C$101.29 Price reduced from C$116.12
Save C$14.83
Have a Question? +1 (866) 863-0907

Specifications:

  • Dual Pilot Adjustment Valve
  • [ 1/8" Mpt X 3/16" Cct ] [Width 1.25"],
  • [ Comes With Twin 3/16" Cct ]
  • American Range, Royal Range
  • Bakers Pride Broiler Series: 50, Ch, Xx, Sgbr
  • Imperial Broiler Series: Eba, Gd, Icb, Irb.
  • Grill Series: Imga.
  • Range Series: Icra, Ispa.
  • Roaster Series: Ipr, Ipra.
  • Rankin-Deluxe Broiler Series: Drb.
  • Southbend Oven Series 400
  • Us Range Broiler Bbq-48, C-Hds-A(24,36,48).
  • Gxc(24,36,48), Gxr(30,36,48,60) Series:Performer, Rg-Hds-A.
  • Wolf Broiler Cmss, Fcb, Scb.
  • Range Ch, Chss.

Description

The Southbend 1166004 Range Double Pilot Tube Fitting 3/16" is used to ensure that two pilot tubes are connected securely to make sure that the gas is delivered properly through the supply to the pilot assemblies. It operates by offering a stable point of junction where gas can be equally channeled to aid the ignition process within the range system. This 3/16-inch dual fitting is designed to be installed in Southbend ranges, and it is installed in the gas line assembly to connect pilot tubing and ensure the flow of the components remain consistent.

Dimensions:

  • Weight: 0.2 lbs
  • Length: 1.2 in
  • Height: 1.5 in
  • Width: 0.7 in

AMERICAN RANGE:

10432 A29301 AMRA29301

APW WYOTT:

2065641

ATOSA:

301030007

BAKERS PRIDE:

2V-R3020A BKPR3020A R3020A R3020X

COMSTOCK CASTLE:

25016

GARLAND:

1150099 1510402 153844 GL1150099 GL1510402

HOBART:

00-409557-00004 00-420786-00001 109557-4 120786-1 19190 409557-00004 409557-4 420786-00001 420786-1 6614 719190 806614

IMPERIAL:

1003 1003-1 1608 IMP1608

RANDELL:

CB-09 CB09 DRB-12 GT-10 RB-12 RDCB-09 RDCM-04 RDGM-14 RDHP-16A RDHP-E-C-16A RDLR-08A SP-14 SSPR-11 SUHP-10 SUHP-E-C-10 TB-12 TB-3-12 TB3-12

RANKIN DELUX:

CB-09 CB09 DRB-12 GT-10 RANRB12 RANTB12 RB-12 RB12 RDCB-09 RDCM-04 RDGM-14 RDHP-16A RDHP-E-C-16A RDLR-08A SP-14 SSPR-11 SUHP-10 SUHP-E-C-10 TB-12 TB-3-12 TB12 TB3-12

ROYAL RANGE:

053-AP6-1 0531-AP6-1 1211 53AP6-1 ROY053-AP6-1 ROY53AP6-1

SOUTHBEND:

SOU1166004

VULCAN HART:

00-409557-00004 00-420786-00001 00-719190 109557-4 120786-1 19190 409557-00004 409557-4 420786-00001 420786-1 6614 719190 806614 VH109557-4 VH409557-4 VH420786-1

Step1: Shut off the gas supply and ensure unit is cool.

Step2: Remove range front panel to access pilot tubing area.

Step3: Disconnect old pilot tube fitting carefully.

Step4: Install a new pilot tube fitting and align both tube connections.

Step5: Tighten all joints securely to prevent leaks and replace the panel.

Step6: Restore gas supply, check connections, and test pilot ignition.
