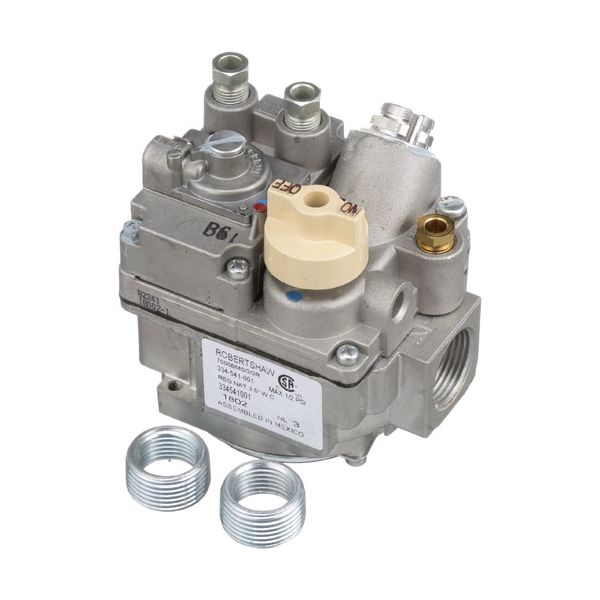

Pitco PTP5045659 Natural Gas Safety Bleed Gas Actuator W/Pilot 3/4" FPT 300,000 BTU
Special Price CAD$418.01 Regular Price CAD$728.46
In stock
SKU
PTP5045659
Manufacturer:
The Pitco PTP5045659 Gas Valve 3/4" is used to direct gas flow by controlling the flow of gas using the internal valve structure. It operates by activating an actuation system, which opens the valve to suit the operational needs. The valve is fitted in the gas supply system of compatible commercial fryers. The collection is attached to gas piping and control systems within the equipment. It has applications in cooking, whereby there is a need to deliver gases at a controlled rate in order to keep the burners operating and to sustain the heating rate.
Dimensions
- Length: 4.5 In
- Width: 2.5 In
- Height: 2.5 In
- Weight: 2.1 lbs
Product Notes
- [ Nat Gas ] [ Size 3/4" Fpt ] [ Nat Safety ][ 3.5"Wc ]
- [Bleed Gas Actuator] [ Width 4"] [ Brand Rsw ]
- 1/4" Cct Pilot Out Only, W/Slotted Thermopile Magnet
- 3/4" X 1/2" Reducer Bushings, Model 7000 Bmsgor
- Bleed Gas Ports 1/4" Cct, 300,000 Btu
- **Use # 51-1470 To Convert To Lp Gas.**
- Thermopile, H231, T-103, # 51-1122, Screw In Type, 3/8-32
- Brass Pile Holding Nut, 3/8-38 Thread For Magnet, 750Mv,
- 500Mv Under Load.
- Southbend Fryer Series: 14,18.
- Vulcan Hart Fryer 7891G, 7892G, Hf91G, Hf92G.
- Wolf Fryer Ss-Wtf-42, Wtf-42.
