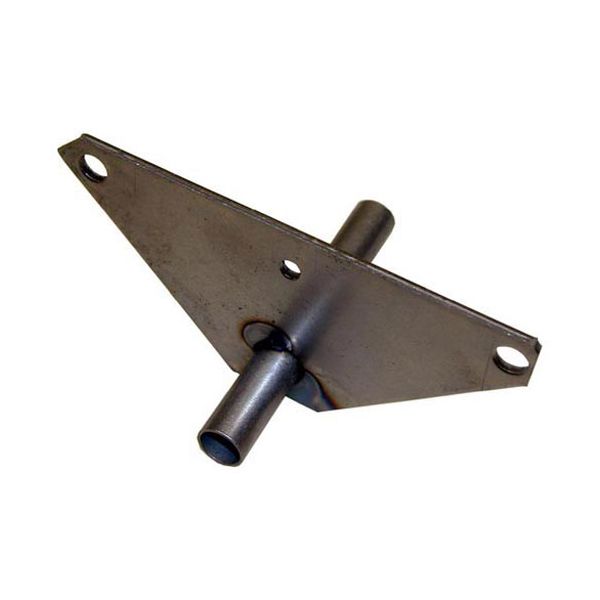

Southbend 1195164 Quadrant Assembly

Be the first to review this product
Special Price CAD$79.85 Regular Price CAD$124.29
In stock
SKU
1195164
Add to Wish List
Plumbing Parts, Adapters,
Manufacturer:
The Southbend 1195164 Quadrant Assembly is type of control linkage part that is utilized to allow accurate motion between control knobs and internal valve mechanisms. It is fitted at the back of the control panel and converts rotational motion to controlled mechanical positioning. This assembly is essential in controlling the working ensuring proper alignment and movement. It is advisable to replace in case of wear, looseness or misalignment of the control that influences the accuracy of the control system performance.

Dimensions

  • Length: 5 In
  • Width: 2.5 In
  • Height: 3.5 In
  • Weight: 0.4 lbs
https://partsfe.com/media/catalog/product/s/o/southbend-1195164-quadrant-assembly-w-1-2-od-tube-and-1-8-steel-plate-58725-2.jpg

Product Notes

  • Quadrant Assembly,
  • 4-5/16" Hole Ctrs, 1/2" Od Tube 1-1/4" Out One Side
  • And 2-1/4" Out The Other Side, 1/8" Steel Plate
  • Overall Tube Length = 3 5/8"
  • Tube 1/2" Od, .425" Id
  • Southbend Oven Series: 324,336,348,360,424,436,448,460
