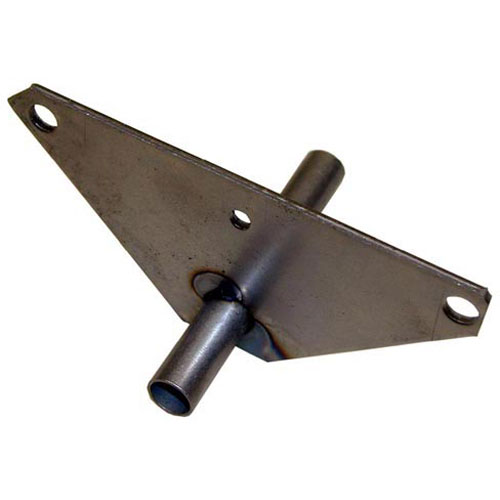

Southbend 1195164 Quadrant Assembly

SKU: 1195164 2-1195164 Brand:
Southbend
Availability:
In Stock
(0)
C$95.13 Price reduced from C$133.25
Save C$38.12
Have a Question? +1 (866) 863-0907

Specifications:

  • Quadrant Assembly,
  • 4-5/16" Hole Ctrs, 1/2" Od Tube 1-1/4" Out One Side
  • And 2-1/4" Out The Other Side, 1/8" Steel Plate
  • Overall Tube Length = 3 5/8"
  • Tube 1/2" Od, .425" Id
  • Southbend Oven Series: 324,336,348,360,424,436,448,460

Description

The Southbend 1195164 Quadrant Assembly is type of control linkage part that is utilized to allow accurate motion between control knobs and internal valve mechanisms. It is fitted at the back of the control panel and converts rotational motion to controlled mechanical positioning. This assembly is essential in controlling the working ensuring proper alignment and movement. It is advisable to replace in case of wear, looseness or misalignment of the control that influences the accuracy of the control system performance.

Dimensions:

  • Weight: 0.4 lbs
  • Length: 5 in
  • Height: 3.5 in
  • Width: 2.5 in

SOUTHBEND:

1180859

Step1: Shut off the gas and electrical supply to the appliance.

Step2: Remove the control panel to access quadrant assembly.

Step3: Disconnect the old quadrant, and mounting hardware from the bracket assembly.

Step4: Install new quadrant assembly, align tube and plate securely.

Step5: Secure all fasteners, ensure smooth movement, then test burner operation.
