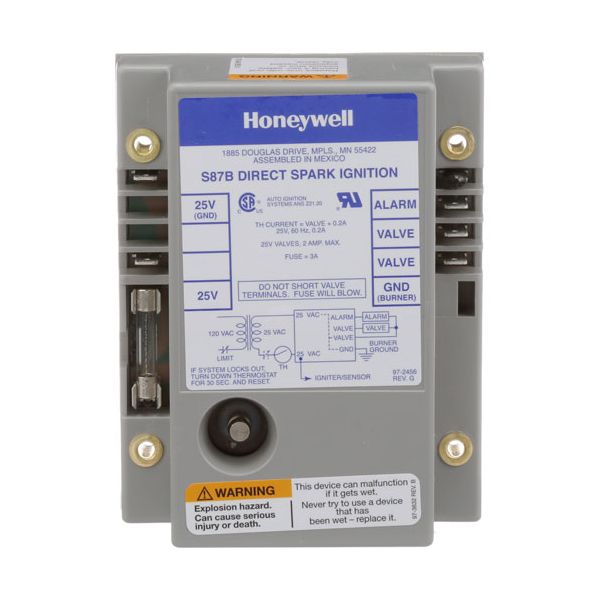

Cleveland 03546 Convection Steamer Direct Spark Ignition Module
Special Price CAD$368.41 Regular Price CAD$683.16
In stock
SKU
03546
The Cleveland 03546 Convection Steamer Direct Spark Ignition Module triggers the ignition process by supplying a high-voltage spark to the burner to maintain a steady flame formation to generate steam. It regulates the ignition process to ensure the burner is operating correctly during the cooking process. This module is mounted directly into the control panel of the steamer and is linked to the burner assembly to provide automatic ignition and to fit into the existing electrical system of the unit providing accurate control over start-up cycles and ensuring that the steamer operates as intended.
Manufacturer:
Dimensions
- Length: 4.5 In
- Width: 6.25 In
- Height: 3.5 In
- Weight: 1.2 lbs
Product Notes
- Honeywell
- 25V Direct Spark Ignition Module, 4 Sec Lockout,
- Uses Single Electrode For Flame Sensing And Spark Ignition
- 4" X 5-1/16", Rajah Spark Terminal On Top.
- 5Ea 1/4" Tab Terminals. 3 Amp Fuse (381050)
- Cleveland Skillet T7Es.
- Steamer Convection Steamer: 9-Pcdm-L, 9-Pcem-48-L,
- 9-Pcgm-250-L, 9-Pcgm-300-L, 9-Pcsm-L,
- Gas Steam Generators: 2 Probe Type Units (Large & Small).
- Vulcan Hart Fryer Series: Ccfd.
