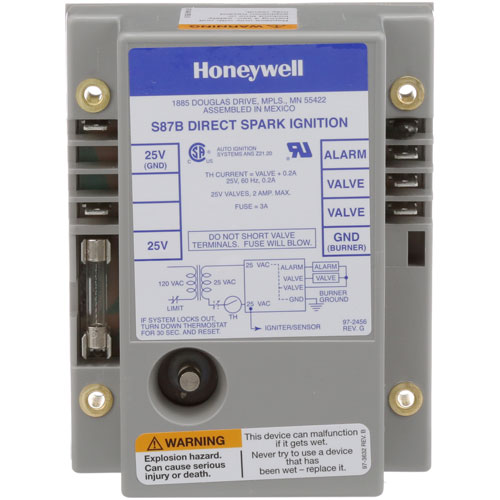

Cleveland 03546 Convection Steamer Direct Spark Ignition Module

SKU: 03546 2-03546 Brand:
Cleveland
Availability:
Out of Stock
(0)
C$357.89 Price reduced from C$697.65
Save C$339.76
Have a Question? +1 (866) 863-0907

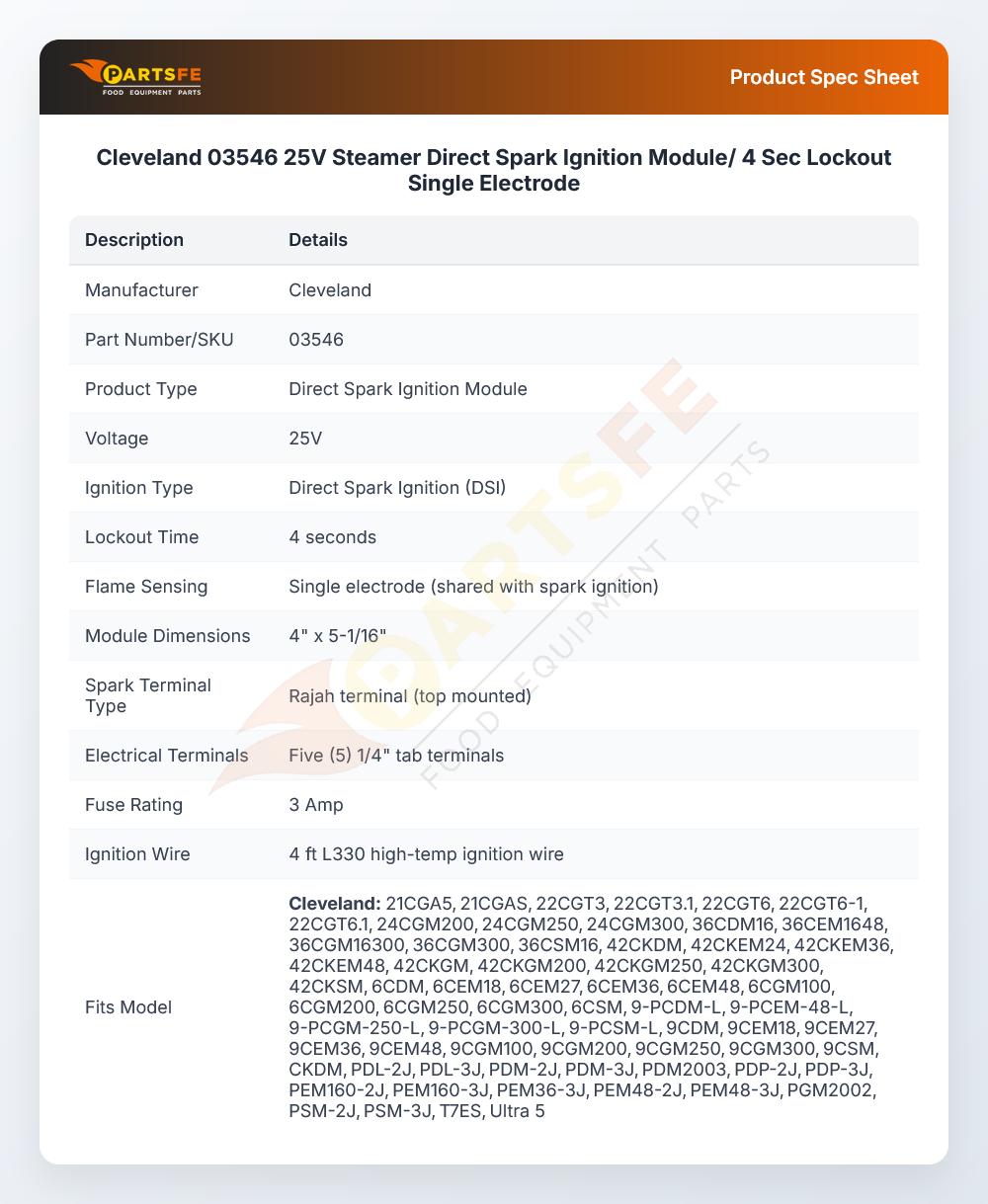

Specifications:

  • Honeywell
  • 25V Direct Spark Ignition Module, 4 Sec Lockout,
  • Uses Single Electrode For Flame Sensing And Spark Ignition
  • 4" X 5-1/16", Rajah Spark Terminal On Top.
  • 5Ea 1/4" Tab Terminals. 3 Amp Fuse (381050)
  • Cleveland Skillet T7Es.
  • Steamer Convection Steamer: 9-Pcdm-L, 9-Pcem-48-L,
  • 9-Pcgm-250-L, 9-Pcgm-300-L, 9-Pcsm-L,
  • Gas Steam Generators: 2 Probe Type Units (Large & Small).
  • Vulcan Hart Fryer Series: Ccfd.

Description

The Cleveland 03546 Convection Steamer Direct Spark Ignition Module triggers the ignition process by supplying a high-voltage spark to the burner to maintain a steady flame formation to generate steam. It regulates the ignition process to ensure the burner is operating correctly during the cooking process. This module is mounted directly into the control panel of the steamer and is linked to the burner assembly to provide automatic ignition and to fit into the existing electrical system of the unit providing accurate control over start-up cycles and ensuring that the steamer operates as intended.

Dimensions:

  • Weight: 1.2 lbs
  • Length: 4.5 in
  • Height: 3.5 in
  • Width: 6.25 in

CLEVELAND:

3546 CLE03546 CLE3546

HOBART:

00-416011-00001 116011-1 416011-00001 416011-1

VULCAN HART:

00-416011-00001 116011-1 416011-00001 416011-1

Step1: Turn off the gas and power to the convection steamer before starting.

Step2: Remove the old ignition module from the control panel.

Step3: Inspect wiring and mounting points for corrosion or damage.

Step4: Install the new module in the same position, aligning mounting holes.

Step5: Reconnect all wires according to the original configuration.

Step6: Secure the module with screws or fasteners.

Step7: Test the burner ignition to confirm sparks occur correctly.
