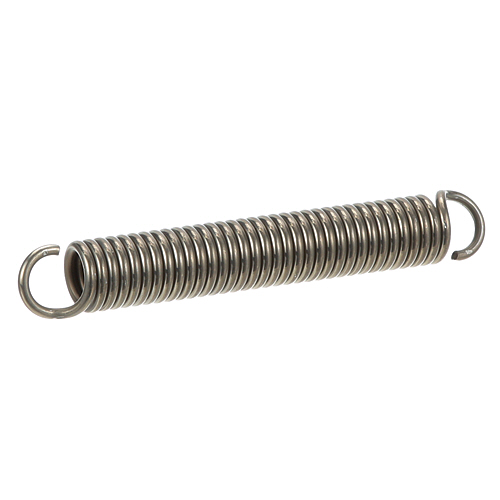

Vulcan Hart 00-413342-00001 Range Door Spring 60/260L/LC/LCC

SKU: 00-413342-00001 2-00-413342-00001 Brand:
Vulcan Hart
Availability:
In Stock
(2)
C$97.59 Price reduced from C$111.85
Save C$14.26
Have a Question? +1 (866) 863-0907

Specifications:

  • Door Spring, Total Length 6",
  • 34 Coils, Spring Coil 4.659" Long,
  • Hooks Face Opposite Direction.
  • Original Had Red Paint On It.
  • Vulcan
  • Oven 36(L,Lc), 60L, 260L, 148(L,Lc), 160(L,Lc), 481(L,Lc).
  • Eg36/60/160/260.
  • Series: 77, Sg77, 141, 241, Series Vg
  • 319A-77R, 399A-77R, E-36, E-60

Description

The Vulcan Hart 00-413342-00001 Range Door Spring is made to assist in the controlled door movement of the equipment it is compatible with such as 60, 260L, LC, and LCC series models. This spring gives the springing tension to aid in opening the door easily and to close it well. The proper spring will stop the sagging of the door and will maintain the door alignment during use. It is install in the door hinge mechanism and is essential in ensuring secure access and heat conservation. The spring can be replaced in case it becomes weak, stretched or broken as a result of the mechanical overload.

Dimensions:

  • Weight: 0.31 lbs
  • Length: 6 in
  • Height: 1 in
  • Width: 1 in

HOBART:

113342-1 413342-00001 413342-1

VULCAN HART:

113342-1 413342-00001 413342-1

Step1: Turn off the oven and open the door fully.

Step2: Remove the old spring by detaching it from the hinge assembly.

Step3: Inspect hinges and mounting points for wear or damage.

Step4: Attach one end of the new spring to the hinge pin.

Step5: Stretch the spring carefully to connect the opposite end.

Step6: Ensure the spring tension allows smooth door movement.

Step7: Test by opening and closing the door several times.
