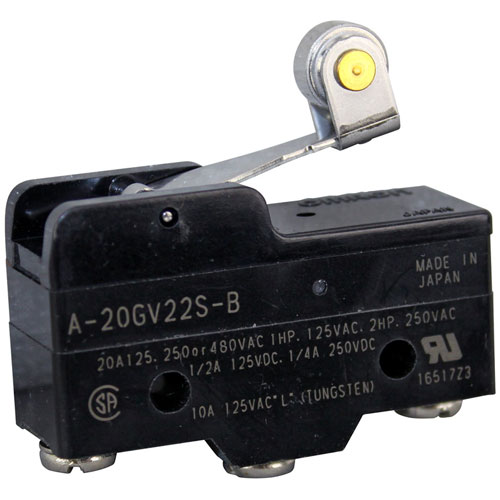

Duke 148077 Oven Door Microswitch

SKU: 148077 2-148077 Brand:
Duke
Availability:
In Stock
(1)
C$65.92 Price reduced from C$75.55
Save C$9.63
Have a Question? +1 (866) 863-0907

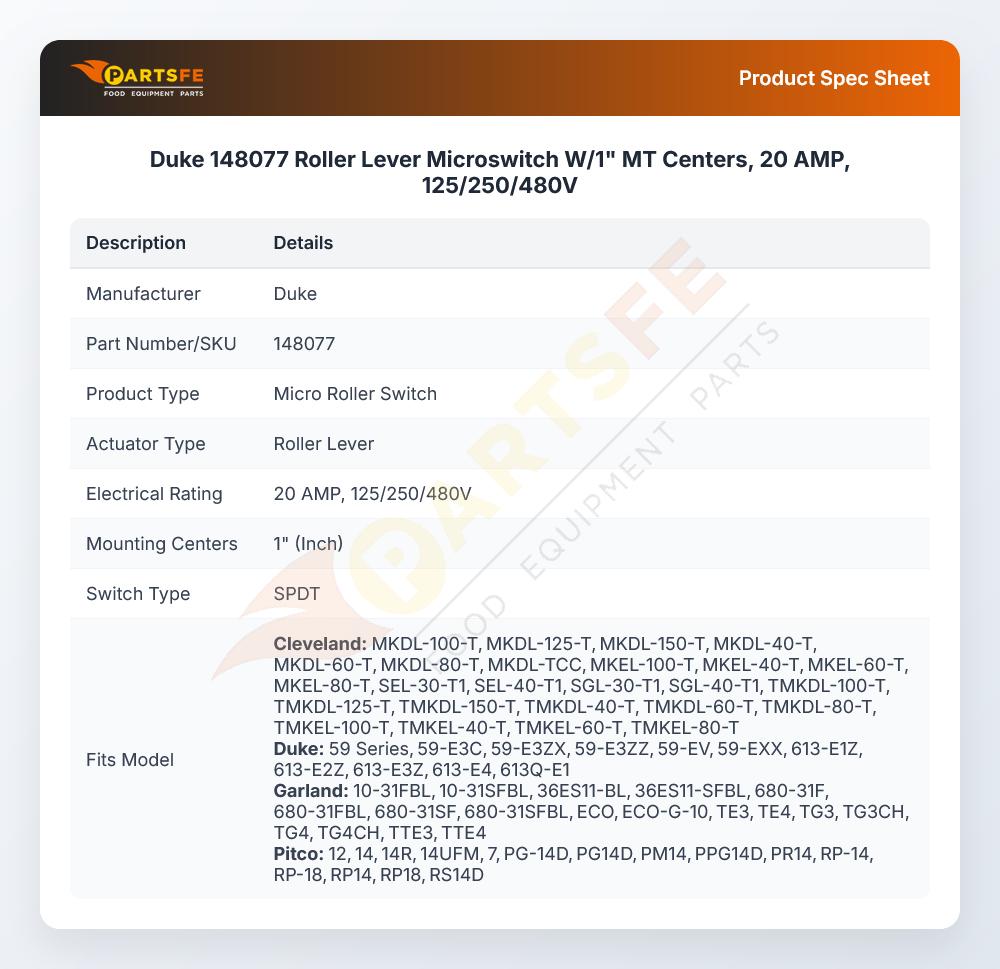

Specifications:

  • Roller Lever Microswitch
  • 20 Amp, 125/250/480V, 1" Mt Ctrs
  • Cleveland Steam Pro
  • Franklin Chef Oven Series: Ghch, Ghcv, Ghsv, Gsch.
  • Frymaster Fryer All Units W/Auto Basket Lift
  • Including Spaghetti Magic.
  • Garland Oven Series: S/N 39369 & Before: Te, Tg, Tte, Ttg.
  • Fryer E18F
  • Pitco Fryer Where Applicable, All W/Basket Lifts.

Description

The Duke 148077 Oven Door Microswitch is a position-sensing control component that is used for door position in compatible systems. It is mounted close to the door frame and reacts to the opening or closing of the door so that the control system can change its operation. This microswitch is used to enable or disallow electrical signals based on the position of the door to provide controlled system actions. The replacement is normally needed when the contact response is weak or when alignment problems are involved in signal accuracy. It provides the uniform response of control, predictability of operation in different operating conditions.

Dimensions:

  • Weight: 0.1 lbs
  • Length: 2 in
  • Height: 1.6 in
  • Width: 0.6 in

CHAMPION:

0501382 501382

CLEVELAND:

104403 2474500 SK2474500

DUKE:

DUK148077

GARLAND:

1019602 G01137 GL1019602 GLG01137

MAGIKITCH'N:

P5047169

PITCO:

P5047169 P5047171 PTP5047169 PTP5047171

STAR MFG:

2E-8456 8456

Step1: Turn off power to the appliance.

Step2: Remove the cover or panel to access the old microswitch.

Step3: Disconnect the wires carefully from the old switch.

Step4: Position the new microswitch so the roller lever contacts the actuator correctly.

Step5: Secure the switch with screws or mounting clips provided.

Step6: Reconnect the wiring according to the original configuration.

Step7: Test the mechanism by moving the actuator to ensure the switch triggers accurately.

Customer Reviews

5 Based on 1 reviews
5 ★
1
4 ★
0
3 ★
0
2 ★
0
1 ★
0
1 review
  • Effective Switch
    Heathdene —

    Satisfying experience, quick and reliable
