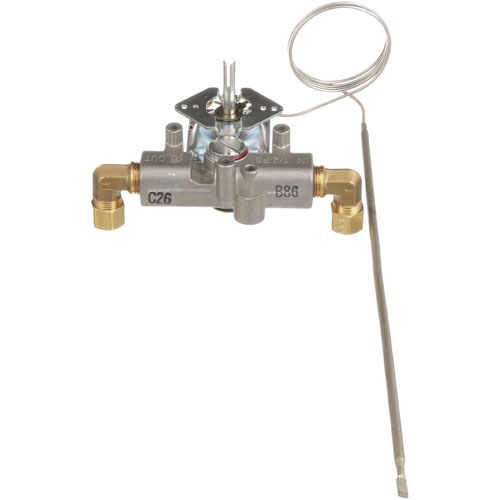

Southbend 1195304 Range Gas Thermostat

What Maintenance is required for the Southbend 1195304 Thermostat?

The Thermostat should be checked regularly for accurate calibration and clean mounting. Inspect the sensor bulb and capillary for bends or damage and ensure the terminal connections remain tight and free of corrosion.

How do I install the Southbend 1195304 Thermostat?

• Disconnect power and gas to the appliance and allow it to cool completely.
• Remove the access panel and locate the old thermostat; note its bulb placement and wiring.
• Disconnect the terminals and remove the thermostat body from the control panel.
• Install the new Thermostat: mount it in the same location, carefully route the sensing bulb (11½″ × 3⁄16″) so it lies flat and secure, with capillary in the same path.
• Reconnect all wiring exactly as before.
• Restore power/gas, set the thermostat to an initial test temperature, and verify that the oven reaches and holds temperature without overshoot.

What are common issues with the Southbend 1195304 Thermostat?

Common issues include runaway or inaccurate temperatures due to a bent or damaged sensing bulb, failure to open/close at setpoint, and unresponsive or broken terminals which lead to no heat control.
