Garland 4523590 Thermostat Kit
CAD$926.44
In stock
SKU
4523590
Manufacturer:
The Garland 4523590 Thermostat Kit is a temperature controller that is sensitive to the amount of heat and open or close an electrical circuit to regulate the heating cycle of commercial cooking equipment. It has an internal thermostat system that reacts to temperature variations and trigger the system that it is connected to begin or cease heat generation when the set point is achieved. This kit is fitted in the control section of compatible ovens ranges or other kitchen appliances where temperature control elements are mounted. It consists of the thermostat unit and other related parts needed to interface with wiring and sensing components of commercial heating assemblies.
Dimensions
- Length: 10.5 In
- Width: 6 In
- Height: 2 In
- Weight: 0.82 lbs
Product Notes

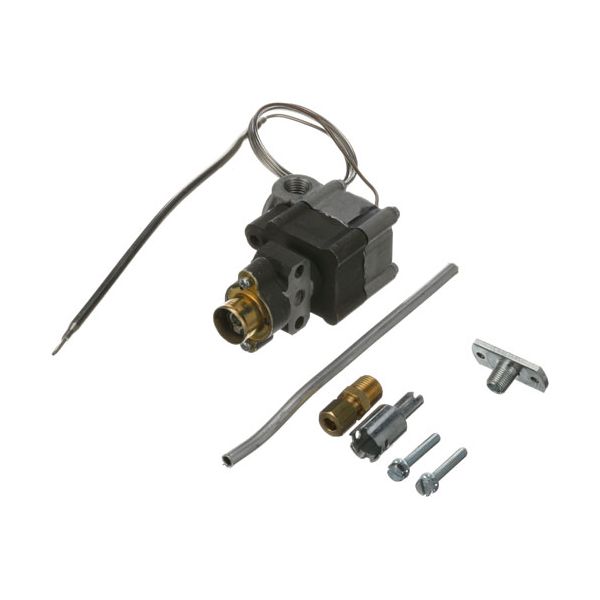

- Bj Thermostat, Includes Flange Nipple #26-3808, Stem Adaptor
- #56-1197, 1/4" X 7-1/2" Pilot Tube, And Screws.
- Viewed From Rear: See "Bj Outlet Positions"
- W/ By-Pass Adj At Top & Gas Inlet Down
- Bj Thermostat, 100-500F, 36" Cap, 3/16" X 8" Nickel
- Bulb, 0 Degrees Rotation - Body Down - Gas Inlet Down.
- Outlet "D" Left 1/4" Fpt. W/ 1/4" Mpt To 1/4" Cct Adaptor.
- No Pilot Adj., Narrow Flange.
- For Knob W/Hub Use # 22-1449
- For Knob Inset Use Gar2225200, Reads 450-100F
- Garland Griddle Gd-15Gth, Gd-24Gth, Gd-36Gth
- Thermostat Only = 4523501, # 46-1778
- For Knob Kit W/ Hub, Knob, Dial Insert Use Oem #4512226
