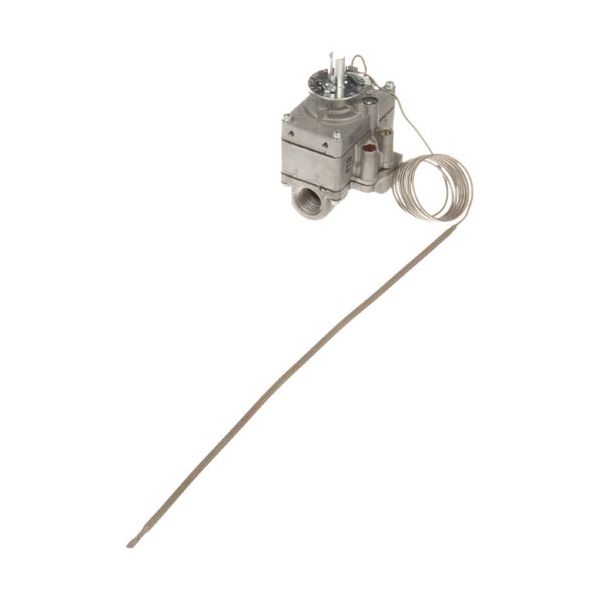

Lincoln 369006 Thermostat Temperature 3/16" X 14-3/4" 48" CAP 300°F-659°F FDTH-1
Special Price CAD$377.01 Regular Price CAD$825.97
In stock
SKU
369006
Manufacturer:
The Lincoln 369006 Thermostat Temperature 3/16" x 14-3/4" 48" Capillary FDTH-1 is a mechanical temperature control used in compatible commercial cooking equipment. It operates by measuring internal heat using its bulb and capillary assembly and controlling the heating circuit to keep desired temperature ranges between 300°C and 659°C. This thermostat is fitted in the control system of the appliance when servicing or replacing it. It also controls the temperature of the ovens or cook chambers and also controls the amount of heat produced as a component of the entire temperature control system of the equipment system.
Dimensions
- Length: 14.75 In
- Width: 1.75 In
- Height: 4.5 In
- Weight: 1.3 lbs
Product Notes
- [ Fdth-1 ] [ Temp 300-650 ] [ Bulb 3/16" X 14-3/4"
- Nickel ] [ Cap 48 ] [ Gas 1/2 Fpt In/Out,
- Gas In: (Side) F ] Gas Out: (Side) E
- [ Dial # 22-1011 (300-650) Black & Silver
- T'Stat Knob For Fd T'Stat, 4-Way Mount ]
- [Bakers Pride Dial # 22-1202 (300-650) Black
- Printed Dial For Fd T'Stat, Flat Down ]
- Note: The Bypass Screw Is Backed All The Way Out Allowing
- Gas To Flow In The Off Position. It Should Be Turned In And
- Then Adjusted For The Proper Bypass Flame.
