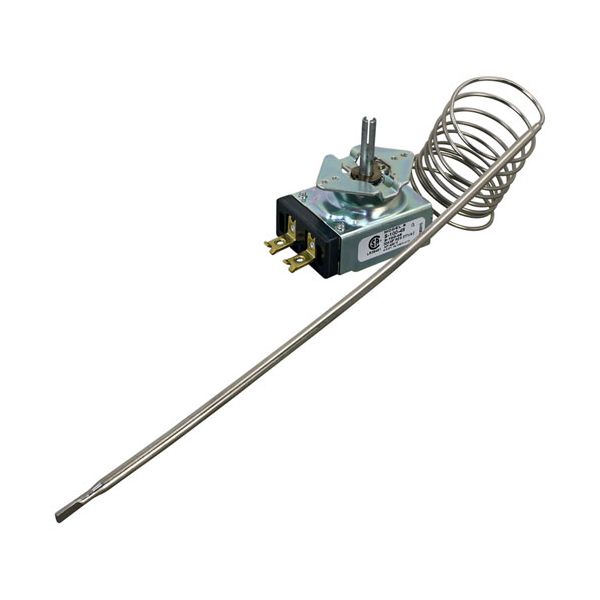

Southbend 3004257 Range Thermostat 150°F-450°F 48" Capillary
Special Price CAD$111.62 Regular Price CAD$203.80
In stock
SKU
3004257
The Southbend 3004257 Thermostat 150°F-450°F 48" Capillary is a temperature control system that is used to control the heat in compatible Southbend ranges that will give the better cooking results. It operates by controlling the internal temperature of an oven its 48-inch capillary tube and automatically cycling the heating elements or gas flow to keep the desired temperature between 150°F and 450°F. This provides even cooking with precise results and avoids overheating. Designed to be dependable this thermostat is a necessary component to keep the range efficient.
Manufacturer:
Dimensions
- Length: 13.25 In
- Width: 2.75 In
- Height: 2.5 In
- Weight: 0.6 lbs
Product Notes
- [ Type- S ] [ Temp 150-450 ] [ Bulb 3/16" X 11-1/8"
- Nickel] [ Cap 48" ] Mount 1 [ Dial #22-1179 Off-
- 450-150 For Drawer Warmer.] [ Dial # 22-1313
- Off-10-0 For Drop-In Warmer. ]
- Toastmaster
- Oven 1503Td, 3012(E,S), 3020, 3024, 3025, 3027, 3028, 3044,
- 3054. Series: 27, Co19, Co38.
- Broiler 4224, 4236.
- Grill Models: B721B(800W), C713B(1200W) & C714B(1650W).
- Built-In: B702A, C703A & C704A.
- T-Line: 7118 & 30, 7224 & 36, 7336, 48 & 72, 7436.
- Built-In T-Line: 7024, 36, 36H, 48 & 72. Griddle (On Range
- 2662): B712(Prior To 1/77), 7224, (After 1/77),7348F.
- 450 Eg F Max Temp, 48" Cab, Bulb = 11-1/8" X 3/16"
