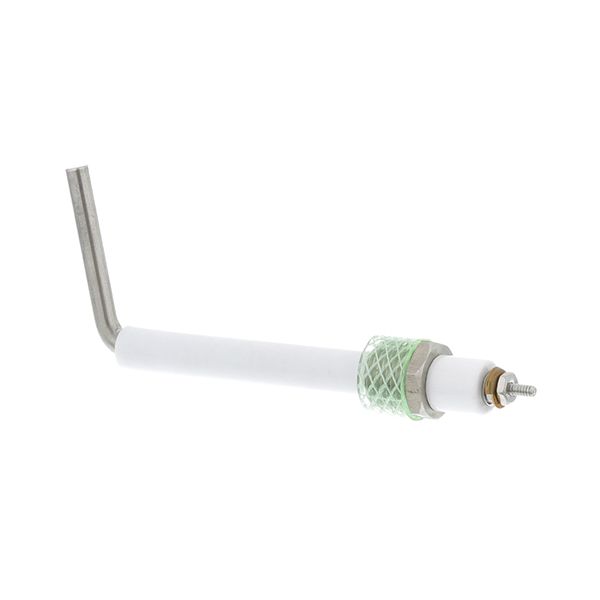

Market Forge 08-6364 4 Liquid Level Water Probe
Special Price CAD$383.43 Regular Price CAD$534.56
In stock
SKU
08-6364
Manufacturer:
The Market Forge 08-6364 4 Liquid Level Water Probe is a sensing component designed to detect and monitor water levels in steam-generating equipment. It operates by sending a signal to the control system from conductive probe elements that touch the water, enabling the equipment to tell if the water level is above or below the set points. The probe is placed into the liquid level monitoring area of compatible equipment in the water reservoir, boiler or steam chamber. It is a component of the water management system that enables the control assembly to adjust to the varying water conditions during operation.
Dimensions
- Length: 5.5 In
- Width: 0.7 In
- Height: 1.7 In
- Weight: 0.2 lbs
Product Notes
- For 2 Probe Systems Before 1999 And 3 Probe Units.
- Fill Probe, Top Of Probe To Bend = 5 1/4",
- Overall Length = 6 3/4"
- 3/8" Mpt, 4-7/8" Under Nut, 6-3/4" Overall,
- Bent At 1-1/2" From End, 2-7/8" Insulator, 1/4" Dia. Probe.
- Used With Probe Plate # 26-2484
- Used With Probe Plate Gasket # 32-1338
- Note: For 3 Probe Systems Use Probes: #44-1259 Lowest,
- #44-1260 Low, #44-1140 Fill,
- Market Forge Steamer/Boiler
