Garland 1086700 Range Thermostat BJWA
Special Price CAD$262.98 Regular Price CAD$416.71
In stock
SKU
1086700
Manufacturer:

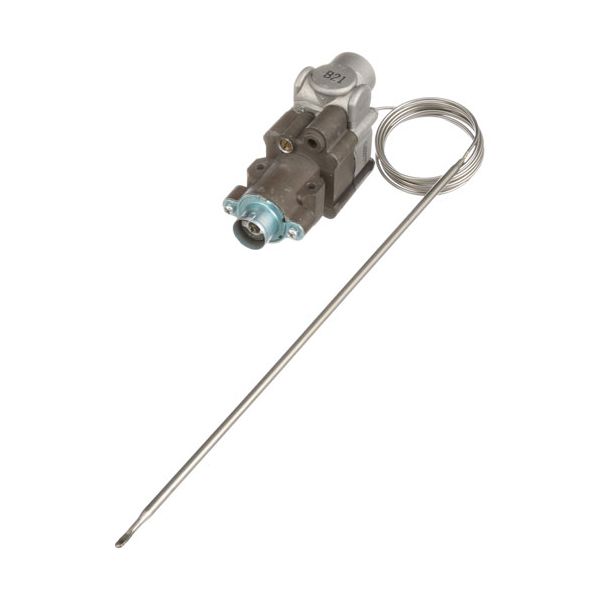

The Garland 1086700 Thermostat BJWA is a part of temperature control which is used in commercial ranges. It measures the inside cooking surface or oven temperature and sends the heating elements into action and holds it to the desired set point. The thermostat is installed as part of the control system so that it can be used during regular cooking cycles to provide uniform and precise control of heat. It is applied in cases where the original thermostat needs replacement to enable the thermostat to regain normal temperature levels. Its purpose in the appliance system is to thermal control, which in equal cooking performance and results when in use.
Dimensions
- Length: 2 In
- Width: 6.125 In
- Height: 1.375 In
- Weight: 0.7 lbs
Product Notes
- Viewed From Rear: See "Bj Outlet Positions"
- W/ By-Pass Adj At Top & Gas Inlet Down
- Bjwa T~
- Stat, Outlet 3/8" For 7/16 Cct "C" Rear,
- If Required Order #262183 Adapter 3/8"Npt To 7/16"Cct
- Rotation 0 Degrees, Temp 250-550, Cap 48",
- Bulb 3/16 X 11 3/16, (Dial Not Included).
- Gen Use Dial # 22-1029 Off-Low-250-500
- [ 2" Dia ] [ Off-Low-250-500] [Mount .240]
- [Position 4 Way], W/ Adapter # 26-1197
- For Bj Kits See # 46-1053 Or # 46-1054
- Garland Oven Px624Bg (Standard Oven).
- Series: G30A (Prior To 2/82).
- Us Range Oven Model: S102626, Series: Px, Sunfire S Series
