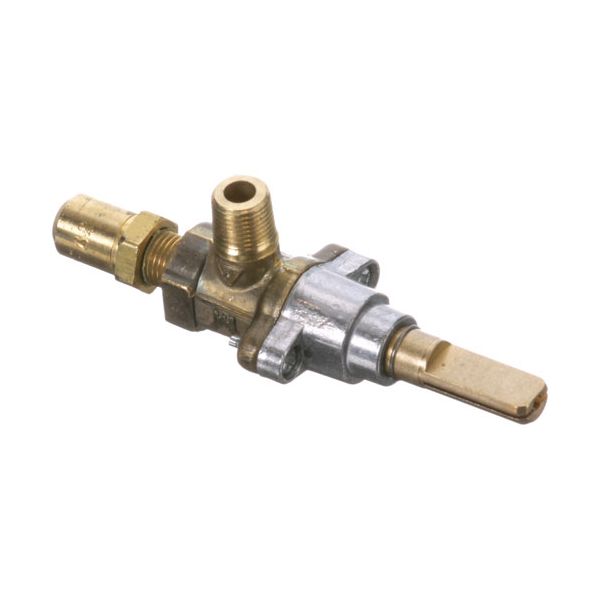

Vulcan Hart VH107076ALN Burner Gas Valve 1/8"MPT X Orifice 42
CAD$36.85
Out of stock
SKU
VH107076ALN
Manufacturer:
The Vulcan Hart VH107076ALN Burner Gas Valve is a control part that is used in commercial cooking equipment. It has a 1/8" MPT connection and Orifice 42 and controls the flow of gas to the burner to maintain proper and consistent flame operation. This is part of the burner assembly in the application, which regulates the supply of fuel to the cooking. In the system, it is vital to ensure that it works correctly, aids in better heat production, and maintains stability in performance when used in a commercial kitchen.
Dimensions
- Length: 1.25 In
- Width: 1.25 In
- Height: 3.625 In
- Weight: 0.2 lbs
Product Notes
- Burner Valve
- [ 1/8" Mpt X 3/8"-27, #42 Orifice Adjustable][ Rotation
- Off/On]
- [Stem Position Down] [Stem Size .240"]
- [Ctr Inlet To End Of Stem 2-1/8"] [ 90 Degree Angle],
- [ Comes With Orifice #42 ]
- Cntr Of Stem To Bottom Of Inlet 7/8",
- Cecilware Broiler Bc, Ccb
- Us Range Broiler Bbq- 48,60,72, C-Hds-A, Rba
- Grill/Griddle Performer Ii, Performer Pf, Rgta
- Hotplate Rhpa
