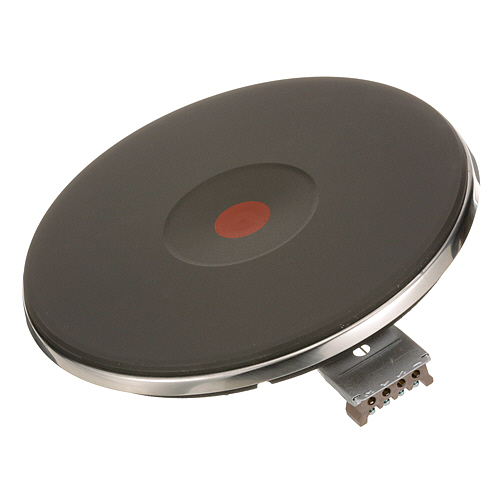

Hobart 00-354784-00002 French Plate Surface Heater W/4 Pin Terminals 9" DIA 2600W 240V

SKU: 00-354784-00002 2-00-354784-00002 Brand:
Hobart
Availability:
In Stock
(0)
C$325.63 Price reduced from C$536.05
Save C$210.42
Have a Question? +1 (866) 863-0907

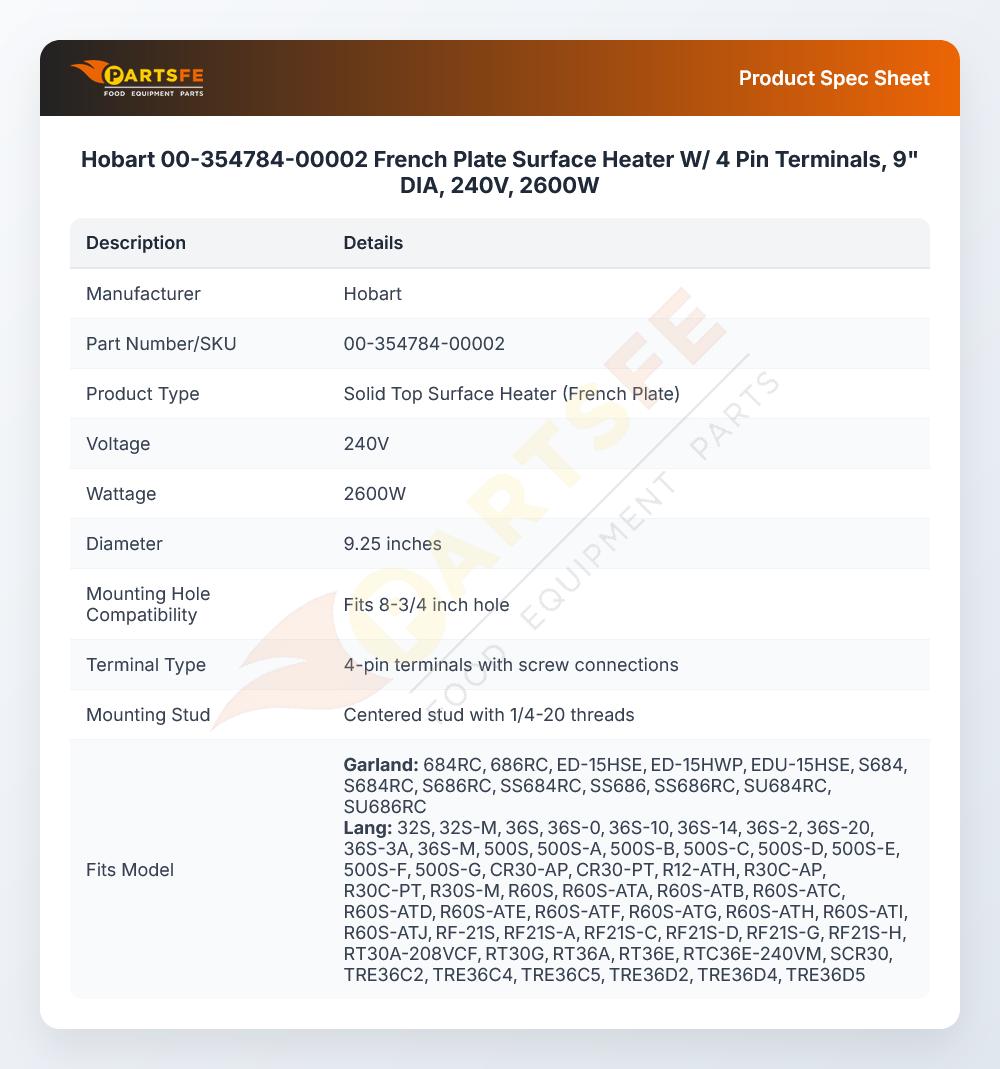

Specifications:

  • Solid Top Surface Heater, "French Plate"[ 240V 2600W ]
  • [ 9.25" Dia.] [ Fits 8-3/4" Hole ][Terminals 4Ea Pin
  • W/Screw, Bottom Has Centered Mounting Stud 1/4-20 Threads
  • And Offset Pin.
  • For Mouting Bracket Use # 26-2514
  • Hobart Solid Range Top Units
  • Toastmaster Solid Range Top
  • Vulcan Range E24L, E36L, E48L, E60L, Vr3C, Vr4C, Vr6C, Vr7C
  • Wells Hot Plate 501Fd, 501Ff, 502Fa, 502Fd, 502Ff, 502Fz

Description

The Hobart 00-354784-00002 French Plate Surface Heater is an electric heating element used in commercial cooking equipment. Installed in the range top opening, the 9-inch French plate contains an internal resistance heater rated at 2600 watts and 240 volts that converts electrical energy into conductive cooking heat. The heated cast surface transfers thermal energy directly to cookware placed on the plate while distributing heat across the cooking area. Connected through a four-pin terminal, the heater interfaces with the range wiring, power supply, and temperature control circuit to regulate heat output and support cooking operations on a solid-top electric range.

Dimensions:

  • Weight: 8.1 lbs
  • Length: 9 in
  • Height: 2 in
  • Width: 9 in

CECILWARE:

G218A

GARLAND:

2147102

GRINDMASTER:

G218A

HOBART:

00-355089-00002 354784-2 355089-2

LANG:

11120-13 2N-11120-13

MIDDLEBY MARSHALL:

1132B8703

SOUTHBEND:

1132B8703

STAR MFG:

1132B8703 2N-11120-13 2N-Y3301 2NY3301
