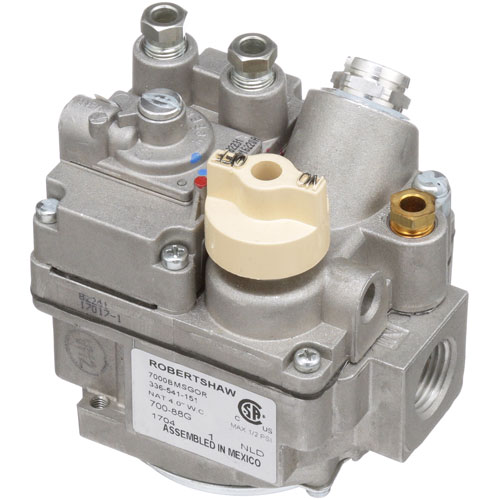

Hobart 00-711355 Natural Gas Valve 1/2" FPT

SKU: 00-711355 2-00-711355 Brand:
Hobart
Availability:
In Stock
(0)
C$441.82 Price reduced from C$769.95
Save C$328.13
Have a Question? +1 (866) 863-0907

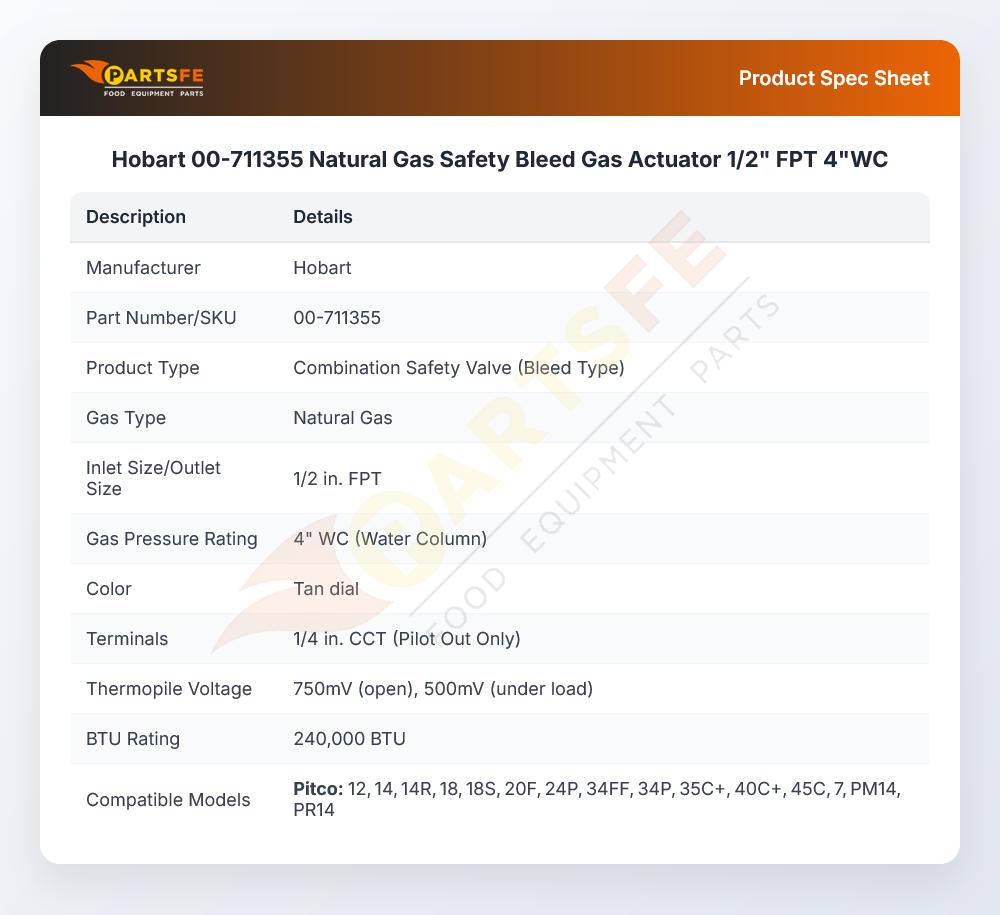

Specifications:

  • [ Nat Gas ] [ Size 1/2" Fpt ] [ Nat Safety ][ 4"Wc ]
  • [Bleed Gas Actuator] [ Width 4"] [ Brand Rsw ]
  • 1/4" Cct Pilot Out Only, W/Slotted Thermopile Magnet, Model
  • 7000 Bmsgor Bleed Gas Ports 1/4" Cct, 240,000 Btu.
  • Thermopile # 511122, Screw In Type, 7/16-27.
  • Brass Pile Holding Nut, 3/8-38 Thread For Magnet, 750Mv,
  • 500Mv Under Load.
  • Pitco Fryer 18, 18S, 35C+, 45C+, P-18
  • Southbend Fryer Series 14, 18
  • Wolf Fryer Wtf-42, Ss-Wtf-42

Description

The Hobart 00-711355 Natural Gas Valve 1/2" FPT operates by controlling the flow of natural gas using a controlled flow which provides an adequate supply of natural gas to the equipment that is connected to it. It works by having an internal passage that opens and closes when necessary, and this provides fine control of the flow of gases in the system. This valve is commonly fitted in the commercial kitchen equipment or gas supply lines, and it is placed where accurate control of the flow is needed to ensure the correct operation of the equipment. Designed with safe connectivity, it has a 1/2" FPT design that can be easily integrated with the regular gas piping systems.

Dimensions:

  • Weight: 2.3 lbs
  • Length: 8 in
  • Height: 3 in
  • Width: 3.5 in

ANETS:

P5045642 P8905-59

DYNAMIC COOKING SYSTEMS:

74089-01

GARLAND:

1092700

HOBART:

11355 711355

HUSSMANN:

1053997

PITCO:

P5045642 P5045659 P8905-59

SOUTHBEND:

1053997

VULCAN HART:

11355 711355

  • What maintenance is required for the Hobart 00-711355 Gas Actuator?

    It should be cleaned regularly to remove soot from the pilot tip and checked for corrosion on the valve body. Inspect thermopile connections to ensure consistent ignition performance.

  • How do I install the Hobart 00-711355 Gas Actuator?

    • Turn off gas supply and disconnect the old gas actuator and pilot assembly.
    • Position the new 00-711355 and thread the 1/2" gas inlet connection securely.
    • Attach the pilot gas line and reconnect thermopile wires to their matching terminals.
    • Apply leak-test solution to the all joints and verify no gas leakage.
    • Relight the pilot and confirm the valve opens and closes correctly during operation.

  • What are common issues with the Hobart 00-711355 Gas Actuator?

    Typical issues include a inconsistent pilot flame due to a clogged pilot orifice. Low thermopile output or internal valve wear can also cause slow or failed valve opening.
