Keating 002567 Coaxial Thermopile 36" 250-750mV
Special Price CAD$71.90 Regular Price CAD$74.86
In stock
SKU
002567

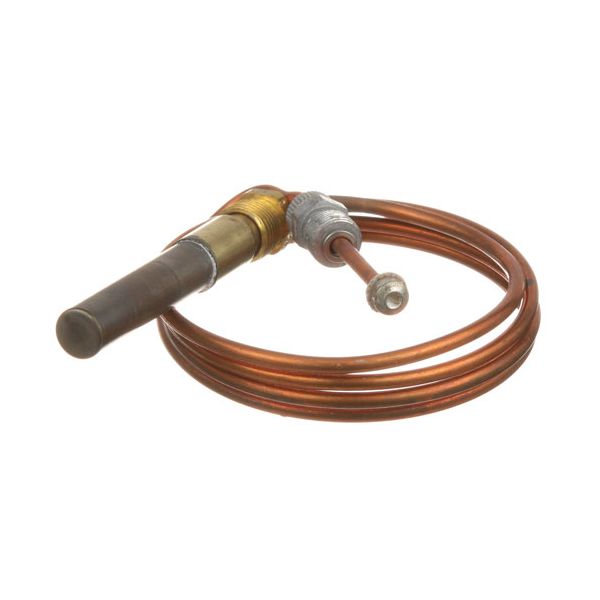

The Keating 002567 Coaxial Thermopile operates by transforming heat of a pilot flame into an electrical signal, which allows an accurate voltage output of 250750 mV. This signal is then used to actuate gas valves, such that the heating equipment is used in a similar manner. It is easily integrated and is installed directly into the pilot assembly of the appliance, and its 36 inch length gives it the flexibility to be placed anywhere in the system. Its coaxial construction makes it easy to connect and at the same time permit it the correct voltage response in different flame conditions.
Manufacturer:
Dimensions
- Length: 3.625 In
- Width: 2.75 In
- Height: 1.125 In
- Weight: 0.2 lbs
Product Notes
- 36" Coaxial Thermopile, 250-750 Mv
- Coaxial Thermopile Threads = 3/8"-32.
- Robertshaw 1951-53F
- Vulcan 1Grc35, 1Grc45, 1Grc65, 1Grd45, 1Grd65, 1Grs35,
- 1Grs45, 1Grs65, Gr35F, Gr45F, Gr65F, Gr85F, Grc35F, Grc45F,
- Grc65F, Grc85F, Grd35F, Grd45F, Grd65F, Grd85F, Grs35F,
- Grs45F, Grs65F, Grs85F
- Wolf Fryer Wtf-42, Ss-Wtf-42
- Grill Tmm (36, 37, 38)
