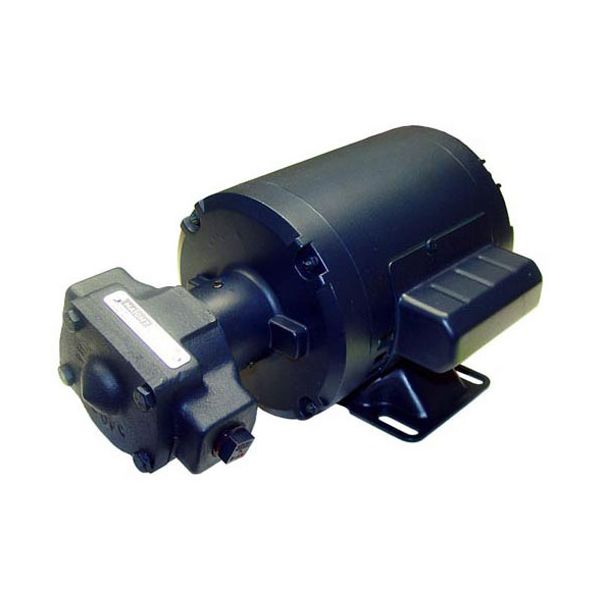

Broaster 10800 1/3 HP Fryer Motor/Pump Assembly 1Ph 1425/1725 RPM 1/2" FPT 115V/230V

Be the first to review this product

Special Price CAD$1,161.96 Regular Price CAD$2,024.92

In stock

SKU

10800

Categories: Electrical & Hardware, Motors & Pumps,

Manufacturer:

Broaster

The Broaster 10800 1/3 HP Motor/Pump Assembly provides betterperformance operation for fryers through its designed specifications. The assembly operates at 1425/1725 RPM through its 1/3 HP motor while accepting both 115V/230V power sources. The assembly includes a 1/2" FPT connection and a 3" x 5" mount center which provides both secure and reliable installation. The assembly includes pump seal #32-1606 together with pump A3834 B-229 #262816 and motor MB-137 #681257. The assembly supports maintenance and repair operations across fryer models produced by BK Industries and Dean and Pitco and Decathalon series.

Dimensions

Length: 11.5 In
Width: 7.25 In
Height: 6.5 In
Weight: 22.3 lbs

Product Notes

Motor/Pump Assmbly, [ 115V/230V, ] [ 1/3 Hp, ] [1Ph ]
[1425/1725 RPM ] [ 1/2" Fpt ] [ 3" X 5" Mount Centers ]
Includes Pump Seal # 32-1606
Pump Only A3834, B-229, # 262816
Motor Only Mb-137, # 681257
Wiring Diagram Located On Inside Of Rear Cover
Bk Industries Fryer
Dean Fryer Mf-90/65, Mf-90A/65, Mf-90/(80,110,126,160,172)
Mf-90A/(80,110,126,160,172), Series: 2424.&
Mf-90U/80Bk With S/N Ending With Hc Or Hch,
Mf-90-Bi(12,14,18,20).
Decathalon Series (D20,D50,D60,D80)Super Cascade Filter
Systems
Pitco Fryer Filter: 18-2Wks, Ag14, Ag14S, F14Rs (1985 &
Later), Sf50, E12, E14, E14B, E14X, E18, E18B, E7, E7B,

Replaces Parts

BK INDUSTRIES:

AN2310010S, BKIAN2310010S, M0047

BROASTER:

DEAN:

FRYMASTER:

PITCO:

Write Your Own Review

FAQS

Customer Questions

What Maintenance is required for the Broaster 10800 Motor & Pump Assembly?

The Motor & Pump Assembly should have the pump seal inspected and replaced if oil or fryer fluid is leaking, and the strainer checked regularly for debris. Also ensure motor mounting bolts remain tight and wiring connections clean.

How do I install the Broaster 10800 Motor & Pump Assembly?

Turn off power to the fryer, shut off oil supply and drain the filter circuit to a safe container.
Disconnect the wiring from the existing motor/pump and remove mounting bolts to take out the old unit.
Clean the mounting pad and ensure the inlet/outlet ports align with piping.
Install the new unit, secure bolts, and connect piping and wiring per the wiring diagram inside the cover.
Refill oil or fluid, restore power, and run the fryer’s filter cycle while checking for proper flow, no unusual motor noise, and absence of leaks around the pump seal.

What are common issues with the Broaster 10800 Motor & Pump Assembly?

Common issues include reduced oil circulation due to clogged strainer or worn impeller, motor failure caused by overheating or incorrect voltage, and leaks around the pump seal leading to loss of pressure or contamination.

What are the operating limitations for the Broaster 10800 Motor/Pump Assembly?

The Motor/Pump Assembly is rated for 115V or 230V single-phase operation at 1/3 HP, 1425/1725 RPM, with ½" female pipe threads (FPT) and 3" × 5" mounting centers.
