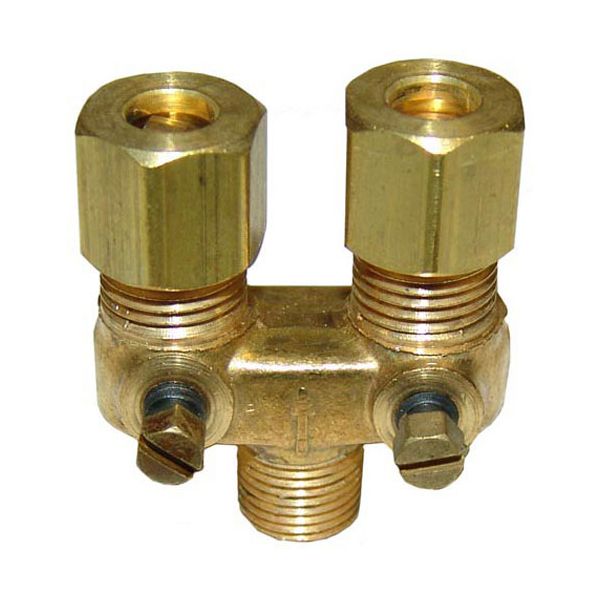

Garland 1510402 Range Double Gum Valve 3/16" X 3/16"
Special Price CAD$29.53 Regular Price CAD$39.80
In stock
SKU
1510402
Manufacturer:
The Garland 1510402 Range Double Gum Valve is a gas control component that is applied to control the flow of fuel two outlet connections that are 3/16 inch in diameter. It is placed in the gas distribution path and assists in routing to various sections of burners under control. The valve is also manually adjusted to control the movement of gases. There is a possibility of replacement due to loss of internal sealing or valve response inconsistency. The correct functioning of the valves helps in maintaining balanced gas flow, stable flame behaviour and uniform heating control in the conditions of commercial cooking.
Dimensions
- Length: 1.2 In
- Width: 0.7 In
- Height: 1.5 In
- Weight: 0.2 lbs
Product Notes
- Dual Pilot Adjustment Valve
- [ 1/8" Mpt X 3/16" Cct ] [Width 1.25"],
- [ Comes With Twin 3/16" Cct ]
- American Range, Royal Range
- Bakers Pride Broiler Series: 50, Ch, Xx, Sgbr
- Imperial Broiler Series: Eba, Gd, Icb, Irb.
- Grill Series: Imga.
- Range Series: Icra, Ispa.
- Roaster Series: Ipr, Ipra.
- Rankin-Deluxe Broiler Series: Drb.
- Southbend Oven Series 400
- Us Range Broiler Bbq-48, C-Hds-A(24,36,48).
- Gxc(24,36,48), Gxr(30,36,48,60) Series:Performer, Rg-Hds-A.
- Wolf Broiler Cmss, Fcb, Scb.
- Range Ch, Chss.
