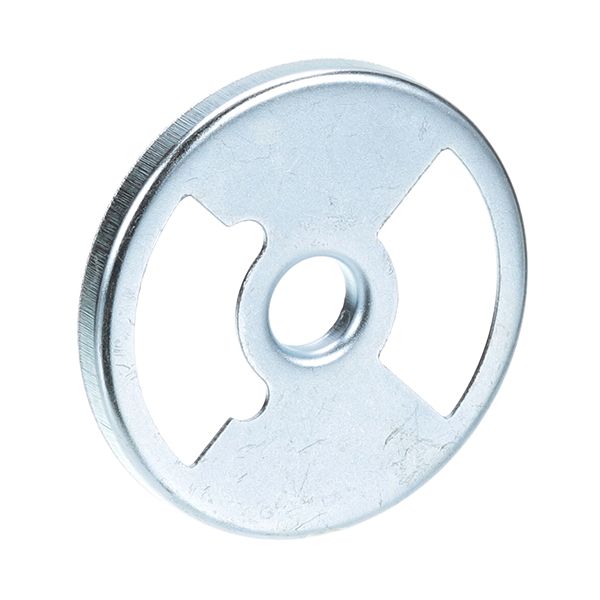

Jade Range 300126000 Air Mixing Plate Single 2 Slots 468 Orifice Hole 2-3/16 OD 2.16 DIA Cast Iron
CAD$3.31
In stock
SKU
300126000
Manufacturer:
The Jade Range 300126000 Air Mixing Plate Single 2 slots with 468 orifice holes, 2-3/16 OD 2.16 DIA cast iron is a replacement part used in commercial systems. It operates by mixing the incoming air with fuel at the burner to promote better combustion and flame nature to produce efficient heat. This plate is mounted in the burner assembly where the air and the gas come together, and then ignition occurs. In the system, it assists in the maintenance of constant flame performance and constant cooking temperatures when operating in the operations of a professional kitchen.
Dimensions
- Length: 2.5 In
- Width: 2.5 In
- Height: 0.25 In
- Weight: 0.1 lbs
Product Notes
- Air Mixing Plate, Single Plate, 2 Slots,
- .468" Orifice Hole, 2-3/16" Od
- Fits 2.16" Dia Cast Iron Burner,
- American Range Griddle Armg, Artg,
- Range Ar126
- Carter-Hoffmann
- Dynamic Cooking Systems Broiler
- Garland Broiler
- Imperial Broiler Gb, Eba, Icb
- Hotplates Ihpa, Range Ir W/O Lift Off Burner Heads.
- Jade Broiler Jtkc, Kc
- Rankin-Delux Hot Plate Suhp
- Us Range Broiler/Cheesemelter C-Hds-A, Gxc
- Wolf Broiler A, Ae, Ak, Irb-36, Rb-36,
- Grill 18 X 24, 18 X 36, So-20B
