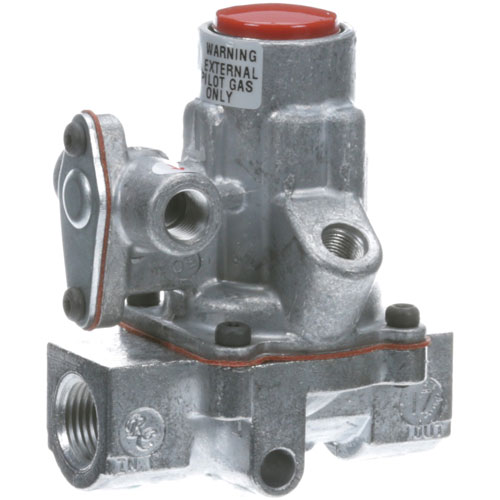

Vulcan Hart 962067-00001 Oven Pilot Safety Valve 3/8"

SKU: 962067-00001 2-962067-00001 Brand:
Vulcan Hart
Availability:
In Stock
(0)
C$497.91 Price reduced from C$694.16
Save C$196.25
Have a Question? +1 (866) 863-0907

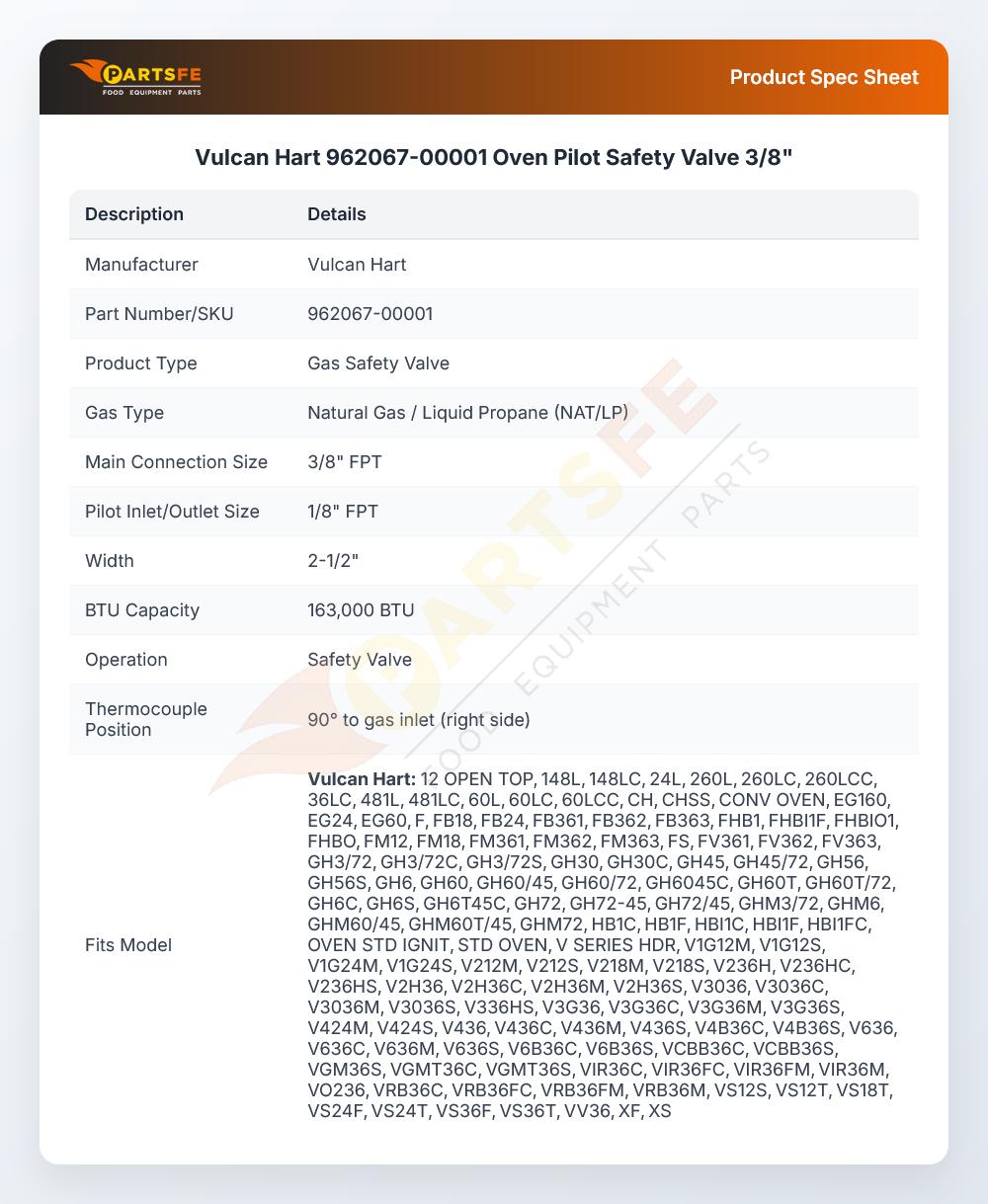

Specifications:

  • [Nat/Lp ] [ 3/8" Fpt] [ Safety ] [ 1/8" Fpt Pilot In/Out ]
  • [ Width 2-1/2" ] [ 163,000 Btu ][ Brand Baso ]
  • [ Mfg# H15Ar-3 ]
  • Vulcan/Wolf
  • Oven Ch & Chss (From 1980-89) Gh, F, Fs.
  • New Style Has Thermocouple Inlet 90 Degrees To Gas In/Out.
  • Product Change: Baso Has Changed This Valve.
  • They Turned The Thermocouple Hole 90 Deg.
  • It Now Is On The Right Side When Facing The Gas Inlet.
  • - Not On The End.

Description

Vulcan Hart 962067-00001 Oven Pilot Safety Valve (3/8”) is an essential safety component that regulates the flow and maintains safety. It permits gas flow only when pilot flame is sensed, using signals from a thermocouple or an ignition system. In the case of the flame going off, the valve is certain to cut the flow of this inflammable gas thereby protecting against similar dangers. Some of the benefits include increased safety in commercial kitchens, the equipment’s ability to perform optimally under pressure and compatibility with most Vulcan models; making it crucial for the safe and efficient running of a commercial kitchen.

Dimensions:

  • Weight: 0.8 lbs
  • Length: 3.25 in
  • Height: 2.25 in
  • Width: 3 in

HOBART:

00-497765-00001 00-705025-0000A 00-720719-00001 15003 20719 497765-00001 497765-1 5025-A 5025A 705025-0000A 705025-A 715003 720719-00001 720719-1

JOHNSON CONTROLS:

H15AR-3C

VULCAN HART:

00-497765-00001 00-705025-0000A 00-720719-00001 00-962067-00001 15003 20719 497765-00001 497765-1 5025-A 5025A 705025-0000A 705025-A 705025A 715003 720719 720719-00001 720719-1 962067-1 VH20719 VH497765-1 VH5025-A VH5025A VH705025-A VH705025A VH715003 VH720719

  • How do I install the Vulcan Hart 00-962067-00001 Pilot Safety Valve?

    • Turn off the gas supply and disconnect electrical power.
    • Remove the appliance’s access panel to expose the existing pilot safety valve.
    • Disconnect the pilot tubing, thermocouple, and gas line from the old valve.
    • Remove the old valve and install the new valve, making sure the inlet and outlet align correctly.
    • Reattach pilot tubing and thermocouple securely; ensure tubing is free of kinks.
    • Apply gas-rated sealant to threaded connections, restore gas and power, light the pilot, and verify proper shutoff in case of flame failure.
