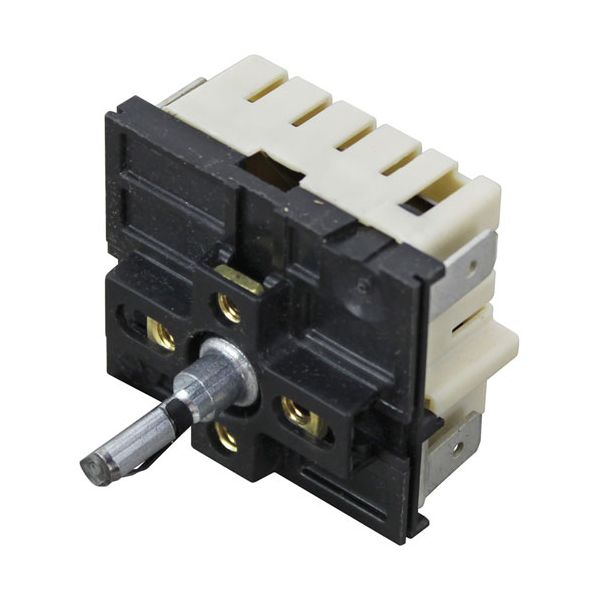

Bloomfield 2E-30570 Infinite Switch 15A 120V
Special Price CAD$48.13 Regular Price CAD$55.18
In stock
SKU
2E-30570
Manufacturer:
The Bloomfield 2E-30570 Infinite Switch is a variable electrical control that is used to control the amount of heat produced in the compatible systems. It is rated 15 amps and 120 volts and it can be used to regulate power flow by turning the heating circuit it is connected to on and off depending on the setting. It is installed behind the control panel and it reacts to the user input to maintain constant temperature during operation. It is suggested that replacement should be done in case the control does not control the exhibits some indications of electrical system.
Dimensions
- Length: 2.25 In
- Width: 1.75 In
- Height: 1.75 In
- Weight: 0.2 lbs
Product Notes
- 120V/15A )( Infinite ), Terminal( 5~
- 1/4" Tab~
- L1,L2(Line),P(Pilot),H1,H2(Load) )~
- Contacts( N.O. )'
- Style( Rotary )~
- Markings( 1-10 ) Shaft( 3/16" Od~
- 3/4" Long~
- .187" Flat Up ) 4 Screw Mt.
- Wells Knob Off-Lo-2-3-4-5-6-7-8-Hi # 22-1073 (Flat Up)
- Bloonfield Model?
- Delfield
- Warmer Series: 8300. Taco Bell & Kfc Units.
- Wells Warmer H33, Hw/Smp, Mod (All), Smp, Smpt, Ss4, Ss8,
- Ss10-4, Ss10-8, Ss10-10Ul, Sw8, Sw10-T, Tmp.
- Hotplate H(65,70,115)
