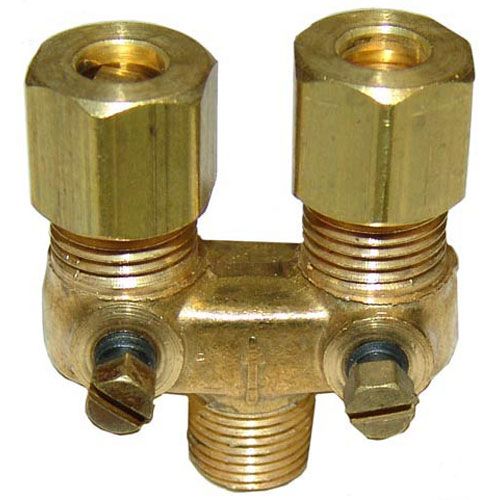

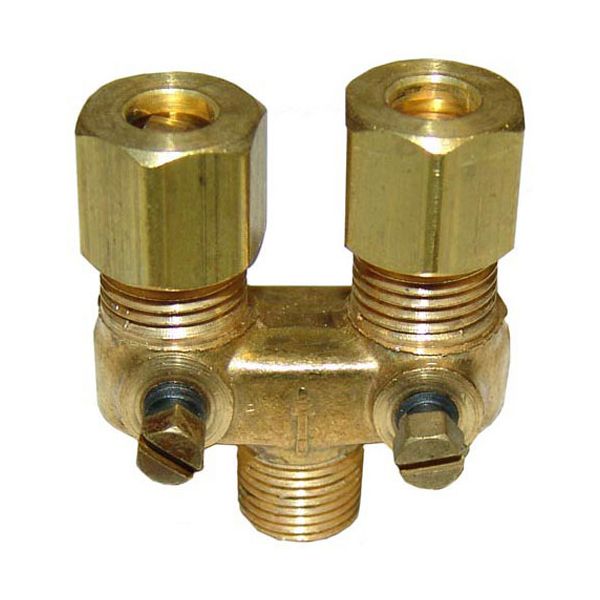

Rankin Delux TB-12 Char Broiler Double Pilot Adjustment Valve TB-8
Special Price CAD$29.53 Regular Price CAD$39.80
In stock
SKU
TB-12
Manufacturer:
The Rankin Delux TB-12 Double Pilot Adjustment Valve is a control component that is used to control the supply of gas to the two pilot lines on compatible char broilers. It is installed in the pilot circuit and it can be adjusted independently to ensure the stability of pilot flames during ignition cycles. The valve allows proper placement of the flame through the control of the amount of gas to be supplied to each outlet. The replacement is normally needed when the adjustment accuracy is lost or in cases where the response to internal wear is compromised.
Dimensions
- Length: 1.2 In
- Width: 0.7 In
- Height: 1.5 In
- Weight: 0.2 lbs
Product Notes
- Dual Pilot Adjustment Valve
- [ 1/8" Mpt X 3/16" Cct ] [Width 1.25"],
- [ Comes With Twin 3/16" Cct ]
- American Range, Royal Range
- Bakers Pride Broiler Series: 50, Ch, Xx, Sgbr
- Imperial Broiler Series: Eba, Gd, Icb, Irb.
- Grill Series: Imga.
- Range Series: Icra, Ispa.
- Roaster Series: Ipr, Ipra.
- Rankin-Deluxe Broiler Series: Drb.
- Southbend Oven Series 400
- Us Range Broiler Bbq-48, C-Hds-A(24,36,48).
- Gxc(24,36,48), Gxr(30,36,48,60) Series:Performer, Rg-Hds-A.
- Wolf Broiler Cmss, Fcb, Scb.
- Range Ch, Chss.
