Star Mfg 2N-11120-13 French Plate Surface Heater W/4 Pin Terminals 9" DIA 2600W 240V
Special Price CAD$325.63 Regular Price CAD$536.05
In stock
SKU
2N-11120-13
Manufacturer:

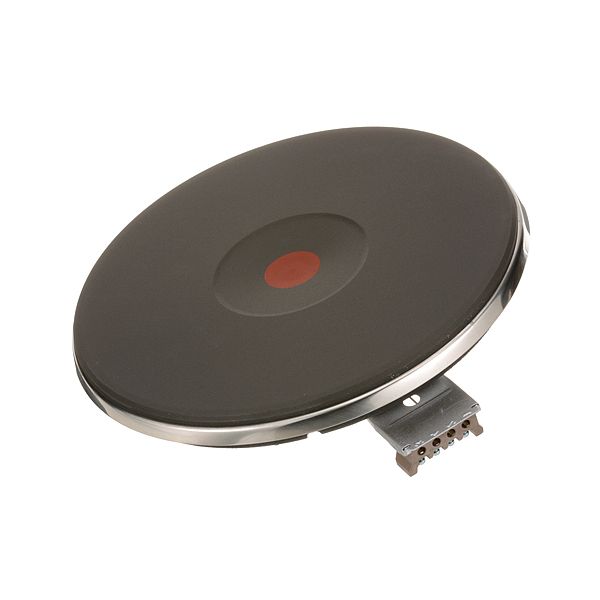

The Star Mfg 2N-11120-13 French Plate Surface Heater is a 9-inch electric heating element designed for use in compatible commercial hot plates and cooking equipment. Operating at 2600 watts and 240 volts it generates heat through an internal resistance element housed within the solid plate assembly. Installed in the cooktop surface, the heater transfers thermal energy directly to cookware placed on the plate. Four-pin terminals connect the element to the appliances electrical circuit switch and temperature-control components. Working with the units control system the heater provides regulated surface temperatures for cooking, heating, and holding in commercial foodservice conditions.
Dimensions
- Length: 9 In
- Width: 9 In
- Height: 2 In
- Weight: 8.1 lbs
Product Notes
- Solid Top Surface Heater, "French Plate"[ 240V 2600W ]
- [ 9.25" Dia.] [ Fits 8-3/4" Hole ][Terminals 4Ea Pin
- W/Screw, Bottom Has Centered Mounting Stud 1/4-20 Threads
- And Offset Pin.
- For Mouting Bracket Use # 26-2514
- Hobart Solid Range Top Units
- Toastmaster Solid Range Top
- Vulcan Range E24L, E36L, E48L, E60L, Vr3C, Vr4C, Vr6C, Vr7C
- Wells Hot Plate 501Fd, 501Ff, 502Fa, 502Fd, 502Ff, 502Fz
