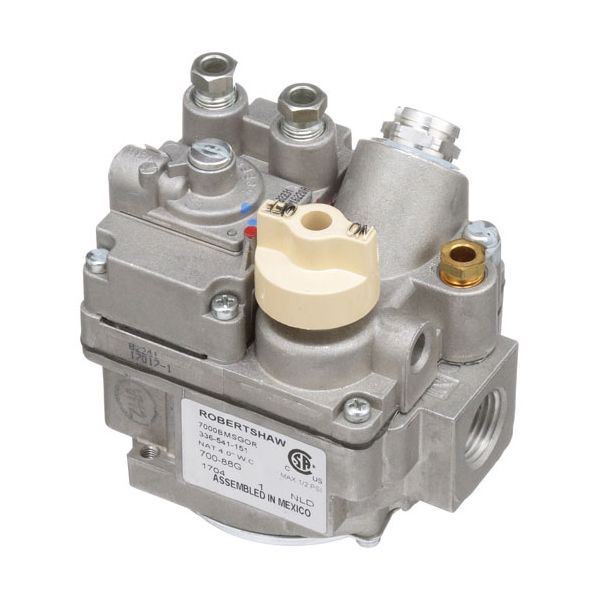

Hobart 711355 Natural Gas Safety Bleed Actuator W/Pilot Burner 1/2" FPT 4"WC
Special Price CAD$418.01 Regular Price CAD$728.46
In stock
SKU
711355
Manufacturer:
The Hobart 711355 Natural Gas Safety Bleed Gas Actuator regulate the amount of natural gas flowing to the pilot burner, which is safe to ignite and monitors the flow of gas. It work by closing and opening the gas pathway in response to the changes in pressure to maintain the correct burner operations. This actuator is linked to a 1/2 inch FPT gas line, 4-inch WC pressure rating, and is mounted directly into the gas system of the appliance. It is placed close to the burner assembly, it has gas supply with the pilot, has controlled operation, and prevents it.
Dimensions
- Length: 8 In
- Width: 3.5 In
- Height: 3 In
- Weight: 2.3 lbs
Product Notes
- [ Nat Gas ] [ Size 1/2" Fpt ] [ Nat Safety ][ 4"Wc ]
- [Bleed Gas Actuator] [ Width 4"] [ Brand Rsw ]
- 1/4" Cct Pilot Out Only, W/Slotted Thermopile Magnet, Model
- 7000 Bmsgor Bleed Gas Ports 1/4" Cct, 240,000 Btu.
- Thermopile # 511122, Screw In Type, 7/16-27.
- Brass Pile Holding Nut, 3/8-38 Thread For Magnet, 750Mv,
- 500Mv Under Load.
- Pitco Fryer 18, 18S, 35C+, 45C+, P-18
- Southbend Fryer Series 14, 18
- Wolf Fryer Wtf-42, Ss-Wtf-42
