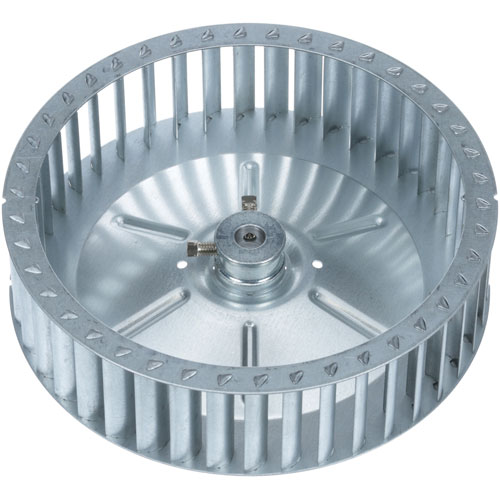

Vulcan Hart VH3-1300-3 Convection Oven Blower Wheel 9-7/8" X 2-5/8" 5/8"

SKU: VH3-1300-3 2-VH3-1300-3 Brand:
Vulcan Hart
Availability:
In Stock
(0)
C$163.23 Price reduced from C$219.85
Save C$56.62
Have a Question? +1 (866) 863-0907

Specifications:

  • Blower Wheel,
  • [ 9-7/8" Dia ] X [2-5/8"W] 5/8" Bore, Concave Back,
  • Cw Rotation, Smooth Hub, 1 Set Screw.
  • Vulcan Motor 120/208/240V 1Ph, # 68-1008 Or
  • # 68-1275 ( Either Will Work)
  • Wolf & Vulcan 2 Speed 115V Motor # 68-1038
  • Vulcan Oven Et,(Not Et4}, Gt,Roe,Sg,Vc
  • Wolf Oven Wkgd

Description

The Vulcan Hart VH3-1300-3 Gas Convection Oven Blower Wheel is a rotational air distribution component used within commercial airflow systems. It features a 9-7/8 inch outer diameter, 2-5/8 inch width, and a 5/8 inch bore that allows secure mounting onto the motor shaft inside the blower housing. When the drive motor turns the shaft, the wheel draws air through its center hub and forces it outward through the curved blades, generating continuous circulation inside the oven cavity. This airflow maintains movement of heated air across internal cooking areas and returns it toward the heat source for reheating.

Dimensions:

  • Weight: 2.6 lbs
  • Length: 9.88 in
  • Height: 9.88 in
  • Width: 2.63 in

HOBART:

00-415780-00003 00-415780-00005 115780-3 3.1300-3 342205-3 415780-00003 415780-3 415780-5

VULCAN HART:

00-415780-00003 00-415780-00005 115780-3 3-1300-3 3.1300-3 415780-00003 415780-3 415780-5 VH115780-3 VH415780-3
