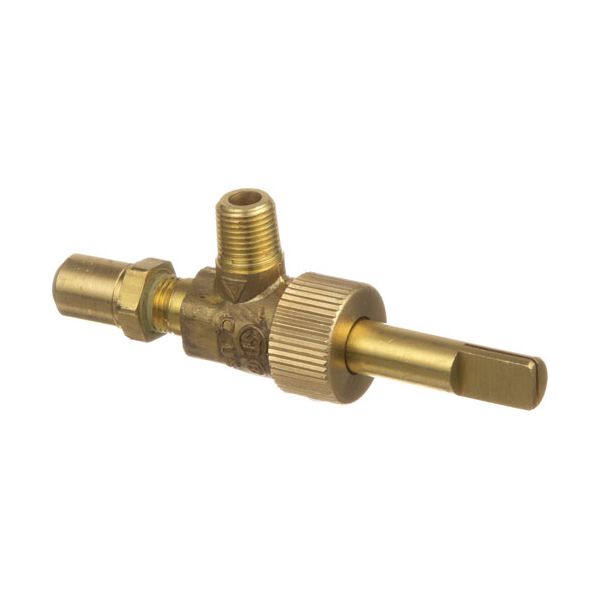

Bakers Pride R3032A Char Broiler Top Burner Valve
Special Price CAD$46.69 Regular Price CAD$51.40
In stock
SKU
R3032A
The Bakers Pride R3032A Char Broiler Top Burner Valve controls the amount of gas that goes to the top burners so that the amount of heat produced during cooking can be adjusted. Adjusting the valve varies the pressure of the gas and lights the burner, keeping the flame at a steady level. It is a valve that is mounted directly on the char broiler with the gas delivery being controlled by this valve and is connected to the burner assembly.
Manufacturer:
Dimensions
- Length: 0.875 In
- Width: 1.875 In
- Height: 3.5 In
- Weight: 0.2 lbs
Product Notes
- ***For Vulcan Hart Use Ap# 8012180***
- Gas In: 1/8" Npt~
- Gas Out: 3/8-27. Off/On, #46 Hood Orifice
- & Point, Adjustable, Brass
- Not Push To Turn Stem: 1-3/16" Long~
- D Stem 1/4". Knob
- #22-1464 Or #22-1164 Depending On Model. Use #26-2937 To
- Convert Valve To 3/8" Cct On Some Models.
- Nat Orifice # 26-1117 Is #57, Nat Orifice # 26-1780 Is #56,
- Lp Orifice # 26-1080 Is #72.
- Anets Broiler Br34-3
- Imperial Broiler Series: Eba, Gd, Icb, Icma, Irb, Isb, Msq,
- Iab(E)(R)(S). Grill Series: Ihr, Imga.
- Range Series: Icra, Ihpa, Ihr, Ir, Ispa.
- Roaster Series: Ipr, Ipra.
