Market Forge 10-6276 Thermostat W/Dial SP 100-450°F 3/16" X 11-5/8" 60" CAP
Special Price CAD$181.45 Regular Price CAD$244.38
In stock
SKU
10-6276
Manufacturer:

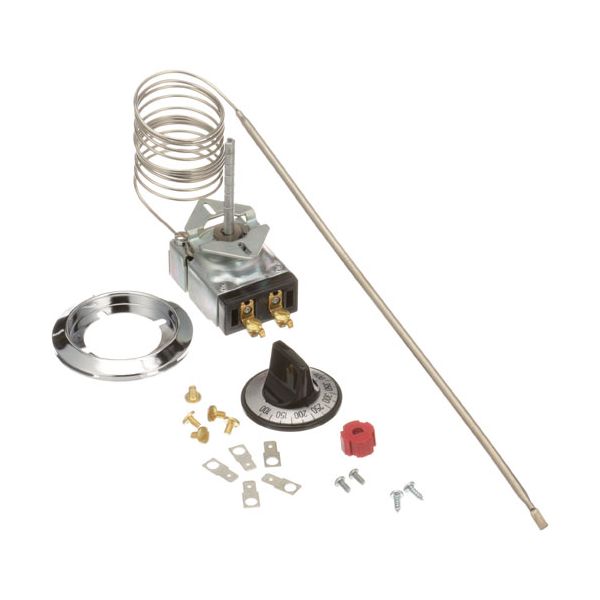

The Market Forge 10-6276 Thermostat with Dial is a mechanical temperature control component used in compatible commercial cooking equipment to regulate heat during operation. Installed with the sensing element positioned in the heated area, it detects temperature changes and adjusts the electrical circuit connected to the heating system. The dial allows operators to select the desired temperature setting, while the capillary sensing system transfers heat changes to thermostat mechanism. With a 100-450°F range, 3/16" x 11-5/8" stem, and 60-inch capillary, it provides temperature control for heating circuit. It works with the equipment controls to maintain the selected operating temperature.
Dimensions
- Length: 13.75 In
- Width: 4.125 In
- Height: 3.5 In
- Weight: 0.6 lbs
Product Notes
- Thermostat, Type Sp, Has Positive Off,
- Includes Knob & Bezel, 2" Breakaway D-Stem.
- [ Type - Sp ] [ Temp 100-450 F ] [ Bulb 3/16" X 11-5/8" ]
- [ Cap 60" ] [ Mount 1 Vert ]
- [Includes Dial # 22-1004 Off-450-100 ]
- Gen Use Dial , # 22-1125 Off-450-100
- Market Forge Skillet
- Vulcan Griddle Series Meg
