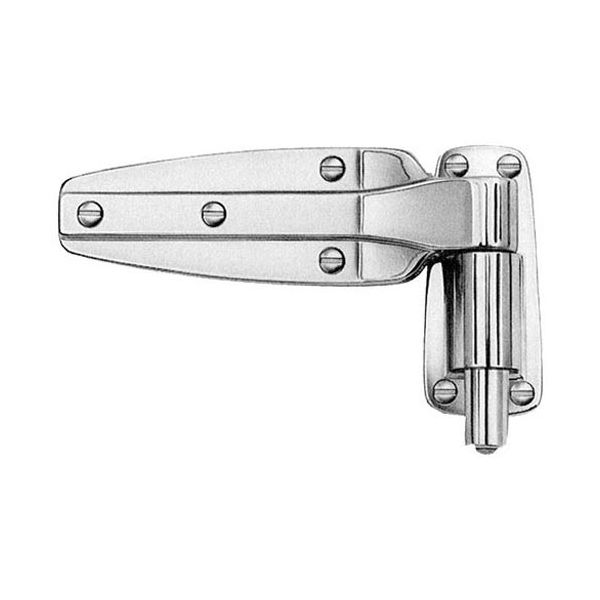

Kason 11248000016 Reversible Spring Hinge 10-1/8" x 5-21/32"
Special Price CAD$204.74 Regular Price CAD$341.83
Out of stock
SKU
11248000016
The Kason 11248000016 Reversible Spring Hinge delivers dependable door operation with dimensions of 10-1/8" x 5-21/32" for applications in refrigeration doors. This hinge demonstrates excellent durability while resisting corrosion because it receives its construction from premium materials. Users can install this hinge on both right-hand and left-hand doors because of its reversible design. The spring mechanism operates to deliver smooth door closure which stops unintended door openings. This hinge delivers secure door sealing and energy efficiency for walk-in coolers and freezers and other facilities that need effective door sealing.
Manufacturer:
Dimensions
- Length: 10.25 In
- Width: 6.5 In
- Height: 0.25 In
- Weight: 3.5 lbs
Product Notes
- Reversible Spring Assisted Cam Rise Hinge,
- 10-1/8" Long Od. X 5-21/32" Wide.
- To Reverse Remove Cap And Push Out Cam, Replace Cam
- On Other Side Of Strap And Replace Cap.
- Strap Has A Hex Hole In It Which Accepts The Stem From The
- Flange., Number "1245" Is Cast On Strap~
- Number "1248" Is
- Cast On Flange.
- 1-1/8" Offset
- Die Cast Zinc Polished Chrome Plated.
