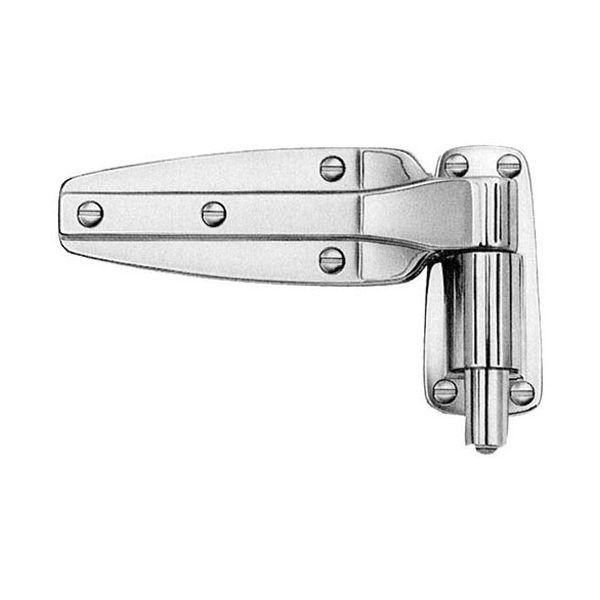

Kason 11248000024 Reversible Spring Assisted Cam Rise Hinge 10-1/8"
Special Price CAD$209.63 Regular Price CAD$251.25
In stock
SKU
11248000024
Manufacturer:
The Kason 11248000024 Reversible Spring-Assisted cam rise hinge is a door hardware parts that is used to support and regulate access to and commercial equipment. This hinge measures 10-1/8 inches and has an inbuilt spring and cam system to open the door and to allow controlled closing to minimize impact and wear. It is usually mounted on equipment panels, machine guards; it needs to be repeatable. In the assembly, it ensures that doors are aligned correctly and that they operate well when opening and maintaining them.
Dimensions
- Length: 10.25 In
- Width: 6.5 In
- Height: 0.25 In
- Weight: 3.3 lbs
Product Notes
- Reversible Spring Assisted Cam Rise Hinge, .
- 10-1/8" Long Od. X 5-21/32" Wide.
- To Reverse Remove Cap And Push Out Cam, Replace Cam
- On Other Side Of Strap And Replace Cap.
- Strap Has A Hex Hole In It Which Accepts The Stem From The
- Flange., Number "1245" Is Casted On Strap~
- Number "1248" Is
- Casted On Flange.
- 1-3/8" Offset
- Die Cast Zinc Polished Chrome Plated.
