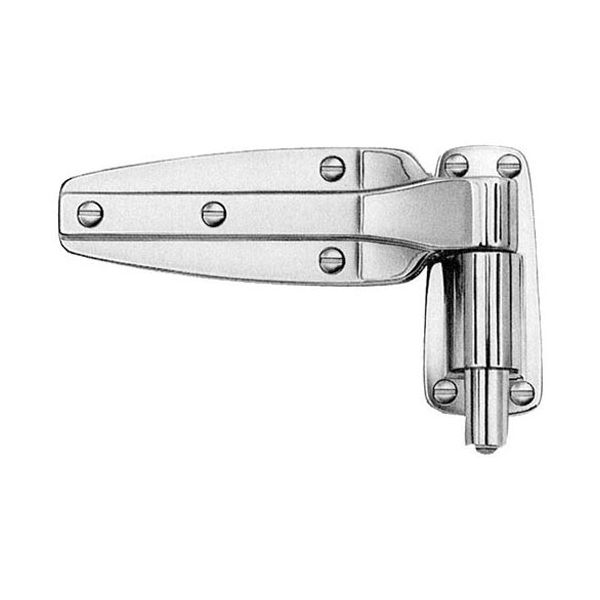

Kason 1248-000024 Reversible Spring Assisted Cam Rise Hinge 10-1/8"
Special Price CAD$209.63 Regular Price CAD$251.25
In stock
SKU
1248-000024
Manufacturer:
The Kason 1248-000024 reversible spring-assisted cam rise hinge is a door hardware part that is used to hold and regulate the movement of access doors and commercial equipment. This hinge, which has an inbuilt spring and cam, is 10-1/8 inches, and the door rises when opening to smooth the closing action. It is normally attached to equipment panels, access doors, machine guards, or service compartments where controlled operation is needed. In the overall assembly, it provides a uniform alignment and movement of the doors.
Dimensions
- Length: 10.25 In
- Width: 6.5 In
- Height: 0.25 In
- Weight: 3.3 lbs
Product Notes
- Reversible Spring Assisted Cam Rise Hinge, .
- 10-1/8" Long Od. X 5-21/32" Wide.
- To Reverse Remove Cap And Push Out Cam, Replace Cam
- On Other Side Of Strap And Replace Cap.
- Strap Has A Hex Hole In It Which Accepts The Stem From The
- Flange., Number "1245" Is Casted On Strap~
- Number "1248" Is
- Casted On Flange.
- 1-3/8" Offset
- Die Cast Zinc Polished Chrome Plated.
