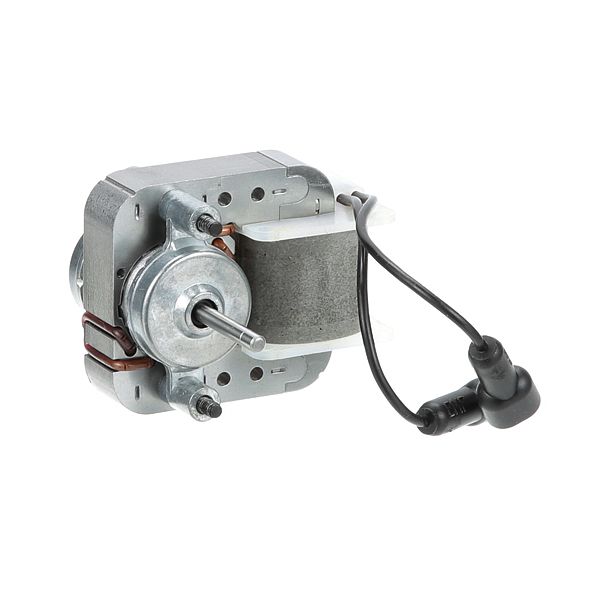

Master-Bilt 13-13260 Fan Motor 3000RPM 0.8AMP 115V
CAD$389.52
In stock
SKU
13-13260
Manufacturer:
The Master-Bilt 13-13260 Fan Motor is an electric drive component that powers air movement through the evaporator section of commercial refrigeration equipment. Rated at 0.8 A, 3000RPM, and 115V, the motor is intended for compatible refrigeration systems requiring this operating specification. It is mounted within the evaporator compartment where it connects to the fan blade and electrical wiring assembly. It converts electrical power into rotational motion to circulate air across the evaporator coil, supporting the transfer of cooled air throughout the refrigerated cabinet during operation.
Dimensions
- Length: 5.5 In
- Width: 3.25 In
- Height: 3.25 In
- Weight: 1.364 lbs
Product Notes
- Length: 1-1/8" Shaft | 28 mm Shaft
- Voltage: 115 V Ac
- Amp: 0.8
- Revolutions Per Minute: 3000
- Outer Diameter: 3/16" Shaft | 5 mm Shaft
- Rotation: Clockwise From Shaft End
