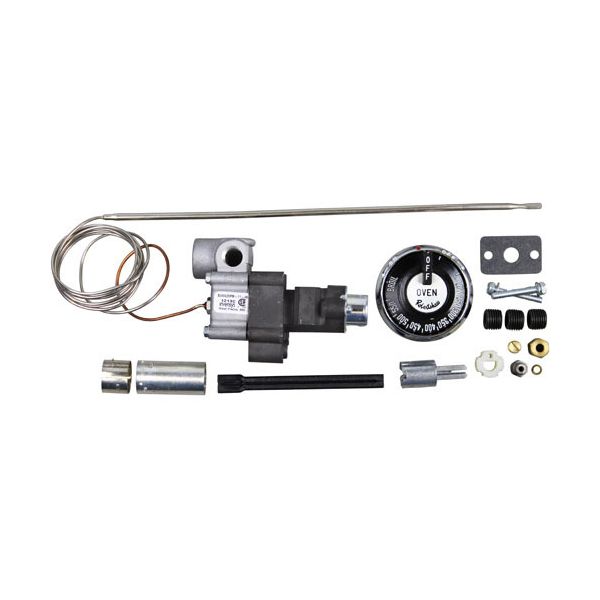

Franklin Chef 143210 Thermostat 3/16" X 11-5/8" 48" CAP 250-550° Pitch BJWA
Special Price CAD$298.76 Regular Price CAD$402.38
In stock
SKU
143210
Manufacturer:
The Franklin Chef 143210 Thermostat 3/16" X 11-5/8" 48" Cap 250-550° Pitch BJWA is a temperature control part used in compatible commercial systems. It controls the amount of heat generated by controlling the burner operation based on the internal appliance temperature to maintain the desired range. In practice, it is fitted to gas-fired ovens usually found in restaurants, kitchens and food service operations where constant cooking temperatures are needed to bake and roast. The thermostat relates to the control assembly by the capillary tube and sensing bulb enabling it to give accurate during the heating cycles. It is normally applied in the maintenance or replacement process to restore the adequate temperature.
Dimensions
- Length: 13.75 In
- Width: 4.25 In
- Height: 3.5 In
- Weight: 1.3 lbs
Product Notes
- Viewed From Rear:See Addl Image "Outlet Positions"
- [ Bjwa Kit W/ 3/16" Cct Pilot [ Temp 250-550 ] [ Bulb
- 3/16" X 11-5/8" ] [ Cap 48" ] [ Out 1/4" Fpt "A,B,C,D,"]
- [ Rotation 0 Degrees ] [ Includes Dial & Bezel, Stem
- Adapters, Gasket, Screws ] Wide Flange.
- Black Dial W/ Adapter = # 22-1028 ]
- Franklin Chef Oven Gr(10,11,12,13,14,16-0,17,22,
- 410,415,416,426).
- Series: Gra & Grax & Grc With S/N 1000000 To 1008568
- &1017255 & After.
- Montague Chinese Bbq Oven 28Cbsf, Montague Ii "R".
- Us Range Oven Series Performer Ii
- Vulcan/Wolf Oven Series: 59, 64.(70 After 11/74).
