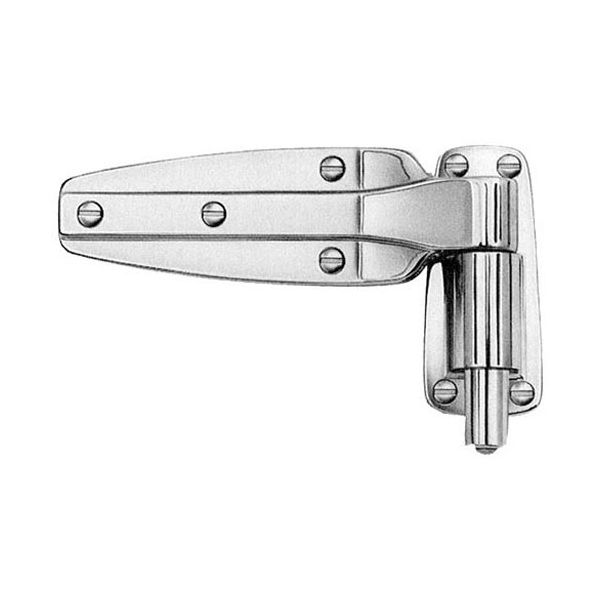

Thermalrite 1476 Reversible Spring Assisted Cam Lift Hinge 10-1/8" X 5-21/32"
Special Price CAD$252.51 Regular Price CAD$341.83
Out of stock
SKU
1476
Kason - 11248000004 Hinge
Manufacturer:
Dimensions
- Length: 10 In
- Width: 6.5 In
- Height: 0.25 In
- Weight: 3.6 lbs
Product Notes
- Reversible Spring Assisted Cam Lift Hinge,
- 10-1/8" Long Od. X 5-21/32" Wide.
- To Reverse Remove Cap And Push Out Cam, Replace Cam
- On Other Side Of Strap And Replace Cap.
- Strap Has A Hex Hole In It Which Accepts The Stem From The
- Flange., Number "1245" Is Cast On Strap~
- Number "1248" Is
- Cast On Flange.
- Flush Offset
- Die Cast Zinc Polished Chrome Plated.
