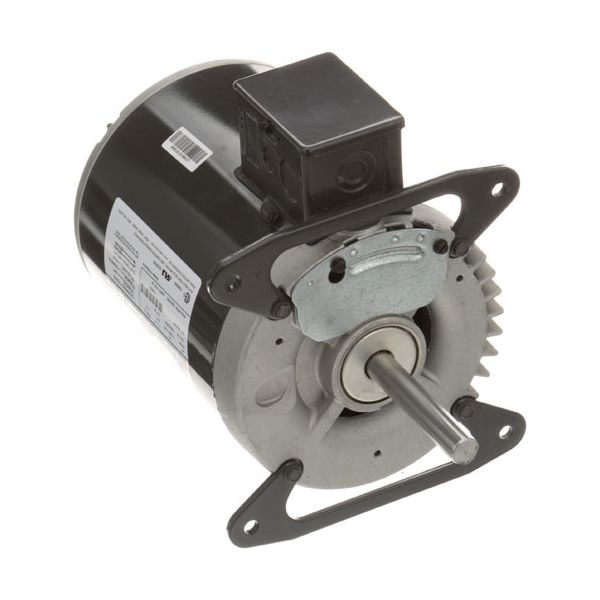

Duke 153034 1/2-0.14HP Oven Motor 200-240V/1PH
Special Price CAD$599.89 Regular Price CAD$1,297.88
Out of stock
SKU
153034
Duke 153034 1/2-0.14HP Motor is suitable for oven that is using 200-240V, 1Ph, 50/60Hz electrical supply. It has two speed settings 1725/1140 RPM and clockwise rotation that guarantees a correct airflow and efficiency of the machine. This comes with a 3.5” x 5/8” shaft with two flats to fit different blower wheels for use in Garland and Duke E-Series ovens. This motor’s efficiency reduces energy consumption by 3.5-4.0/1.5-1.8A while providing high performance. Recommended for oven systems where the proper distribution of air is necessary, it provides the better performance and durability.
Manufacturer:
Dimensions
- Length: 16 In
- Width: 8 In
- Height: 10 In
- Weight: 25.5 lbs
Product Notes
- [ 200-240V, ] [ 1/2-1/4 Hp,][ 50/60 Hz ] [1Ph ] 2 Speed.
- [1725/1140 RPM ] [3.5-4.0/1.5-1.8 A ] [Cw/Reversible
- Rotation ] [3-1/2" X 5/8" Shaft W/ 2 Flats ]
- If Using An Emerson Motor On A Garland Oven, The Two
- Gray Wires May Not Be Needed. Cap Them Individually With
- Wire Nuts. Ground Wire To Motor Case May Need To Be
- Added.
- For Garland Oem Motor 168702 Use #68-1259
- Blower Wheel 9-7/8" Dia X 2-1/2" Deep X 5/8" Bore # 26-1328
- Or Gen Use Blower Wheel 10" Dia. X 2" Deep X 5/8" Bore,
- # 26-4052
- Duke Oven Series: E
