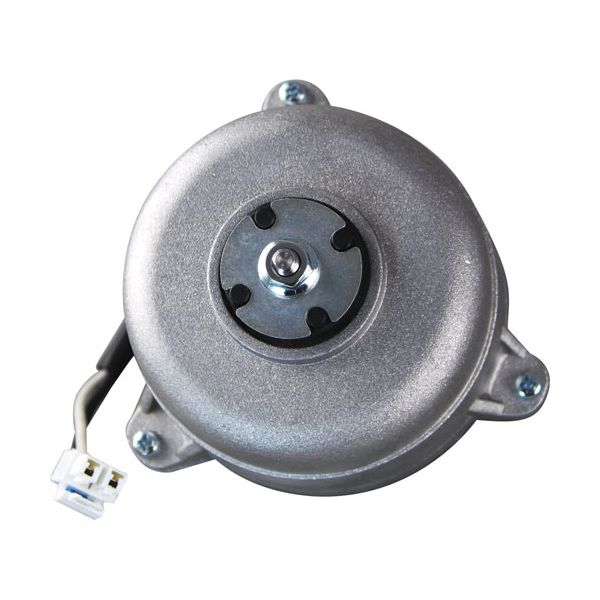

Master-Bilt 2-70917 Evaporator Condenser Fan Motor CW 115V
Special Price CAD$252.62 Regular Price CAD$311.89
In stock
SKU
2-70917
Manufacturer:
The Master-Bilt 2-70917 Evaporator Condenser Fan Motor is a clockwise-rotation motor rated for 115 volts and used in commercial refrigeration systems. It powers fan blades associated with evaporator or condenser assemblies, creating airflow through the refrigeration system. In applications, the motor circulates air across cooling coils within the refrigerated compartment, while systems use airflow to transfer heat from the refrigerant. Operating as part of the systems air movement assembly, this motor supports the exchange of heat required for the refrigeration process.
Dimensions
- Length: 2.5 In
- Width: 1.125 In
- Height: 3.875 In
- Weight: 2.35 lbs
Product Notes
- Evaporator/Condensor Fan Motor, 115V, 60Hz
- Clockwise
- Turbo Air
- Is Used As An Evaporator Or Condensor Motor Based On Model
- And Serial# Of Unit.
- Per Turbo Air- Motor May Have 3 Or 4 Housing Screw Mounts
- But Will Have 4 Mounting Screw Holes On The Bottom Of Motor
