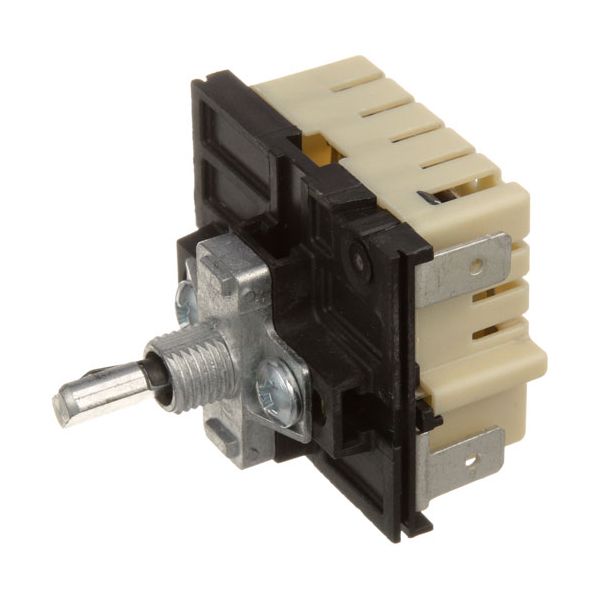

Hobart 411503-000G1 Infinite Heat Control Switch W/Rotary Dial 15A 120V
Special Price CAD$203.18 Regular Price CAD$273.64
In stock
SKU
411503-000G1
Manufacturer:
The Hobart 411503-000G1 Infinite Heat Control Switch W/Rotary Dial 120V/15A is a variable-output control component used in electrical systems. Its rotary mechanism allows manual adjustment of power levels through a continuous range of settings. The switch accommodates 120-volt circuits and supports electrical loads up to 15 amps. It connects with associated conductors and related control elements to manage the flow of electrical current. The component forms part of a user-operated control arrangement and responds to dial position changes. This switch is suited to applications requiring adjustable electrical control and the stated voltage and amperage values.
Dimensions
- Length: 2 In
- Width: 2 In
- Height: 2.5 In
- Weight: 0.2 lbs
Product Notes
- Verticle Palnut Mount, 22-1/2 % At Low Setting
- 120V/15A )( Infinite ), Terminal( 5~
- 1/4" Tab~
- L1,L2(Line),P(Pilot),H1,H2(Load) )~
- Contacts( N.O. )' (
- Rotary )( 1-10 )~
- Shaft( 1/4" Od~
- 3/4" Lg~
- .187" Flat Down )
- Vulcan Dial, Off, Very Low, Medium Low, Low, Medium,
- High, A2719, # 22-1268
- Gen Use Black Knob # 22-1349
- 2" Dia, Off-Lo-2-6-Hi, Universal Mount, W/ 5 Inserts
- Vulcan Hart
- Oven Series: Et & Sg Where Applicable.
