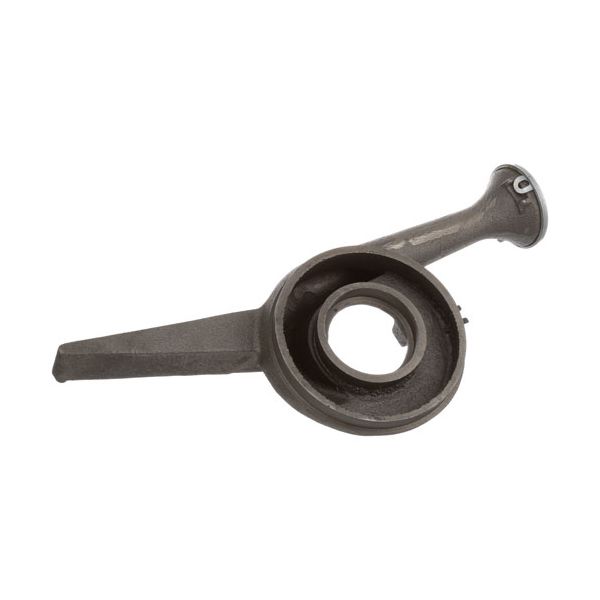

Hobart 417258-G1 Top Front Burner Assembly Cast Iron W/O Head 4-3/8"
Special Price CAD$138.35 Regular Price CAD$186.34
In stock
SKU
417258-G1
Manufacturer:
The Hobart 417258-G1 Top Front Burner Assembly W/O Head supports gas combustion at the front cooking position of commercial cooking equipment. This version measures 4-3/8 inches and is supplied without the burner head. The cast iron assembly receives the gas-air mixture from the burner system and distributes the mixture through its burner openings for ignition and heat generation. It installs on the upper front burner position of the range and interfaces with the burner head and gas supply components. The assembly provides the structural mounting point for the burner components during cooking operation.
Dimensions
- Length: 4.886 In
- Width: 1.924 In
- Height: 0.814 In
- Weight: 6.319 lbs
Product Notes
- Cast Iron Front Burner Assy, W/O Head
- [ 12-1/2"] 4-3/8" Top Opening,
- Air Shutter - A1029, W-340, # 26-1514
- No Burner Head,
- For Burner Head Use A2687, Tb-348, # 24-1141
- Vulcan Range 24L, 36(L,Lc), 48L, 60(L,Lc,Lcc), 148(L,Lc),
- 160(L,Lc), 260(L,Lc,Lcc), 481(L,Lc), Mg-12.
- Series: Mg
