Vulcan Hart 417424G1 Thermostat BJWA 3/16" X 11-5/8", 48" Cap
Special Price CAD$322.65 Regular Price CAD$476.94
Out of stock
SKU
417424G1
The Vulcan Hart 417424G1 Thermostat enables users to maintain exact temperature settings across diverse cooking operations. The thermostat includes a 3/16" diameter bulb with an 11-5/8" long capillary tube to achieve precise temperature measurements inside the cooking chamber. The thermostat functions by measuring cooking environment temperatures which sends to the control system for processing. The control system uses the acquired information to adjust heating elements which results in maintaining a steady desired temperature. The precise temperature control system improves both quality and cooking efficiency while decreasing energy usage during the cooking operation.
Manufacturer:
Dimensions
- Length: 13.75 In
- Width: 4.25 In
- Height: 3.5 In
- Weight: 1.3 lbs
Product Notes
- Viewed From Rear:See Addl Image "Outlet Positions"

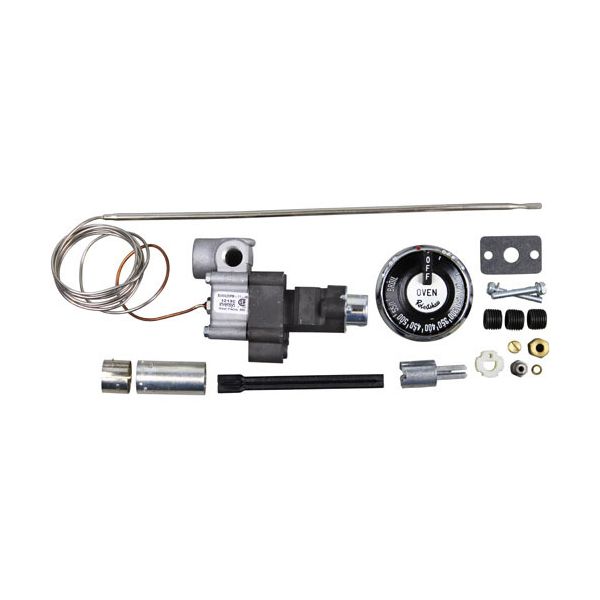

- [ Bjwa Kit W/ 3/16" Cct Pilot [ Temp 250-550 ] [ Bulb
- 3/16" X 11-5/8" ] [ Cap 48" ] [ Out 1/4" Fpt "A,B,C,D,"]
- [ Rotation 0 Degrees ] [ Includes Dial & Bezel, Stem
- Adapters, Gasket, Screws ] Wide Flange.
- Black Dial W/ Adapter = # 22-1028 ]
- Franklin Chef Oven Gr(10,11,12,13,14,16-0,17,22,
- 410,415,416,426).
- Series: Gra & Grax & Grc With S/N 1000000 To 1008568
- &1017255 & After.
- Montague Chinese Bbq Oven 28Cbsf, Montague Ii "R".
- Us Range Oven Series Performer Ii
- Vulcan/Wolf Oven Series: 59, 64.(70 After 11/74).
