Hobart 419316-00001 Fryer Pilot
CAD$266.03
In stock
SKU
419316-00001
Manufacturer:

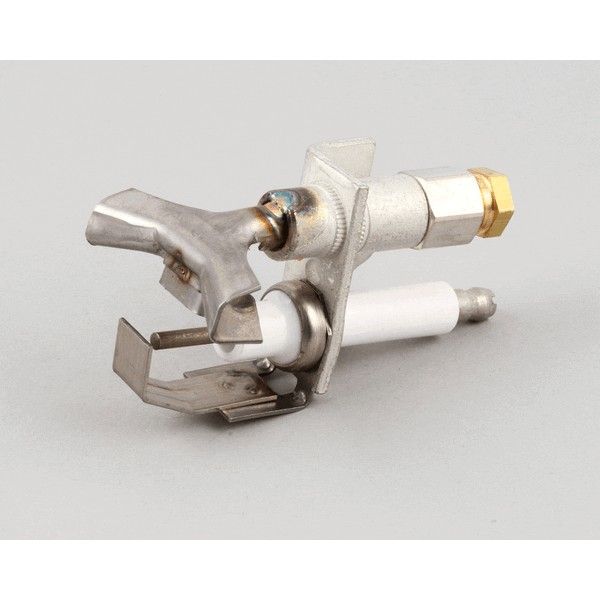

The Hobart 419316-00001 Fryer Pilot is a burner assembly component used in commercial gas to establish and maintain the flame required for ignition. It directs a controlled flow of gas to create a stable flame that assists in lighting the main burner when the fryer is placed into operation. Commonly found in restaurants and foodservice settings this pilot assembly plays an essential role in the fryers ignition and heating system. Proper pilot flame performance supports accurate burner operation temperature control, and the overall performance of the fryer during regular cooking activities.
Dimensions
- Length: 4 In
- Width: 2.75 In
- Height: 1.5 In
- Weight: 0.2 lbs
Product Notes
- Nat Pilot, Factory # Honeywell Q348Al1, Tube Size 1/4",
- Flame Pattern 180 Degrees,
- For Lp Order Orifice # 26-4017.
- Vulcan Hart Fyer Model 1Gpc12, 1Gr45C, 1Gr45D, 1Gr65C,
- 1Gr65D,
- 1Gr85C, 1Gr85D, 1Grc35, 1Grc45, 1Grc65, 1Grd45, 1Grd65,
- 1Grs35, 1Grs45, 1Grs65, Gpc12, Gpc12S, Gpc16, Gpc16S,
- Gr35F, Gr45F, Gr65F, Gr85F, Grc35F, Grc45F, Grc65F, Grc85F,
- Grd35F,Grd45F, Grd65F, Grd85F, Grs35F, Grs45F, Grs65F,Grs85F
