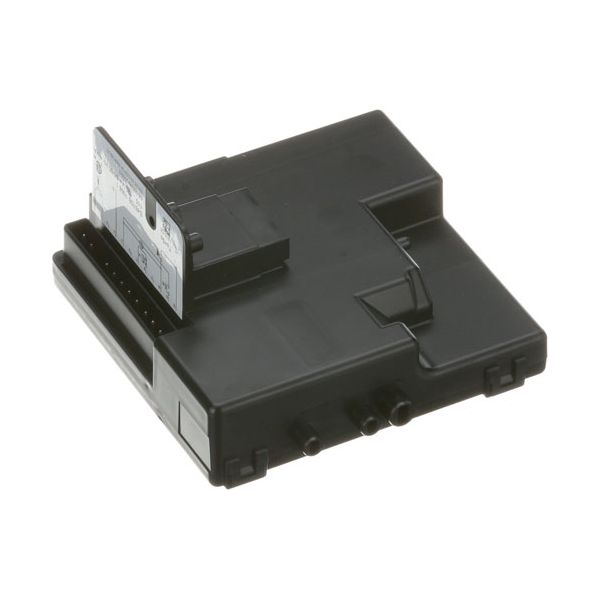

Cleveland 6016023 Range Ignition Control Board W/ Valve

The Cleveland 6016023 Ignition Control Board with Valve should be inspected for loose wiring, burner debris, and signs of heat damage. Keeping the combustion area clean helps ensure reliable ignition and proper valve operation.

• Disconnect the power and gas supply to the Cleveland unit.
• Access the burner compartment and locate the existing ignition board and valve assembly.
• Label all wiring and gas connections before removal.
• Remove the old assembly and mount the new 6016023 board with the valve securely in place.
• Reconnect electrical leads and gas fittings exactly as labeled.
• Restore power and gas, then run an ignition test to verify flame sensing and valve function.

Common issues include failed ignition due to weak spark output, faulty flame sensing, and intermittent gas valve operation. Heat exposure or loose wiring can also cause irregular burner startup cycles.

Ignition control boards with integrated valves typically operate on 24V control circuits and manage gas flow during ignition.
